Options Tab

Previous pageReturn to chapter overviewNext page

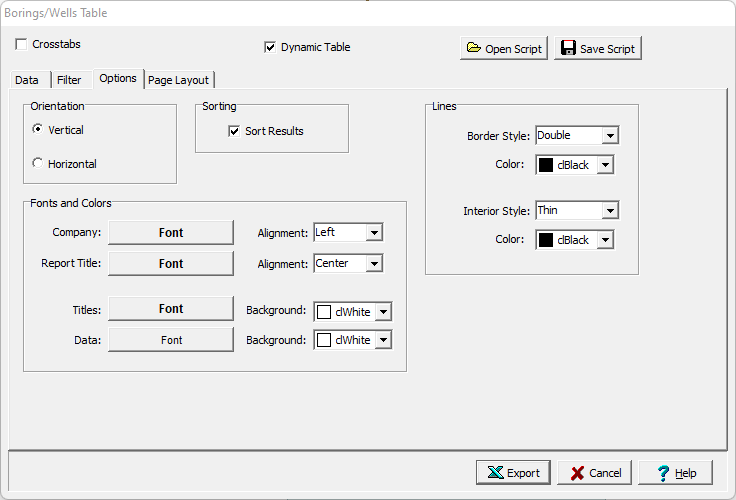

The Options tab is used to specify a variety of format options for the table.



clip14362



The following can be specified on this tab:



Orientation: The orientation can be either vertical or horizontal. If the orientation is vertical, the data fields will be in columns and the borings/wells (or samples or water levels) in rows. If the orientation if horizontal the data fields will be in rows and the borings/wells (or samples or water levels) in columns.



Sorting: Check this box to sort the borings/wells (or samples or water levels) using the first data field in the table.



Company Font: Click this button to select the font for the company name to be placed on the table specified in the Page Layout tab.



Company Alignment: This is used to select the text alignment for the company name.



Report Title Font: Click this button to select the font for the title.



Report Title Alignment: This is used to select the text alignment for the title.



Titles Font: Click this button to select the font for the data titles.



Titles Background: This is used to select the background color for the data title cells.



Data Font: Click this button to select the font for the data.



Data Background: This is used to select the background color for the data cells.
