Concrete Information Tab

Previous pageReturn to chapter overviewNext page

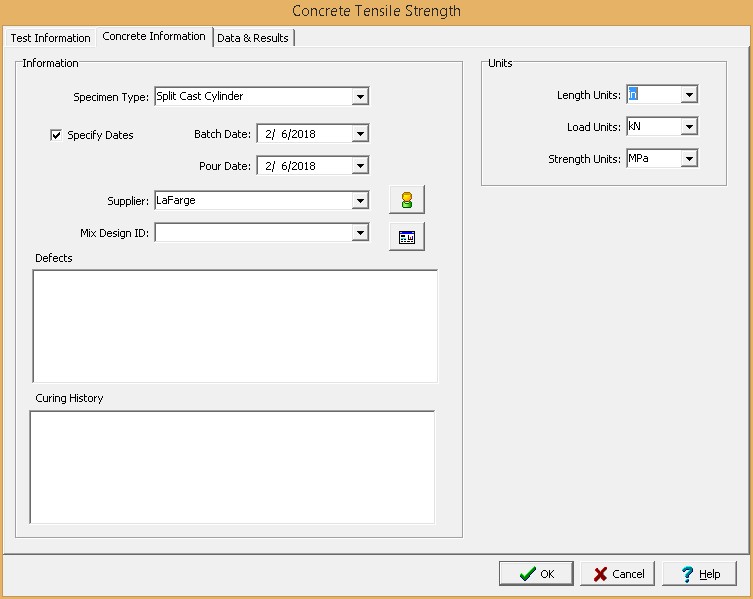

This tab is used to specify the information for the concrete specimens.



clip40255



The following can be entered and displayed on this tab:



Information



Specimen Type: This is used to select the type of specimen. It can either be split cast cylinder or split cored cylinder.



Specify Dates: Check this box to specify the batch, pour, and test dates (the test dates are specified on the Data & Results tab).



Batch Date: If the Specify Dates box is checked, this is used to specify the date and time the concrete was batched.



Pour Date: If the Specify Dates box is checked,  this is used to specify the date and time the concrete was poured.



Supplier: This is used to select the concrete supplier from a predefined list of suppliers. To get detailed information about the supplier click on the button on the right.



Mix Design ID: This is used to select the mix design ID from a predefined mix designs. A datasheet  showing the details of the mix design can be displayed by clicking on the button on the right.



Defects: This is used to specify any defects in the specimens.



Curing History: This is used to specify the curing history of the specimens.



Units



Length Units: This is used to select the units for length.



Load Units: This is used to select the units for load.



Strength Units: This is used to select the units for strength.
