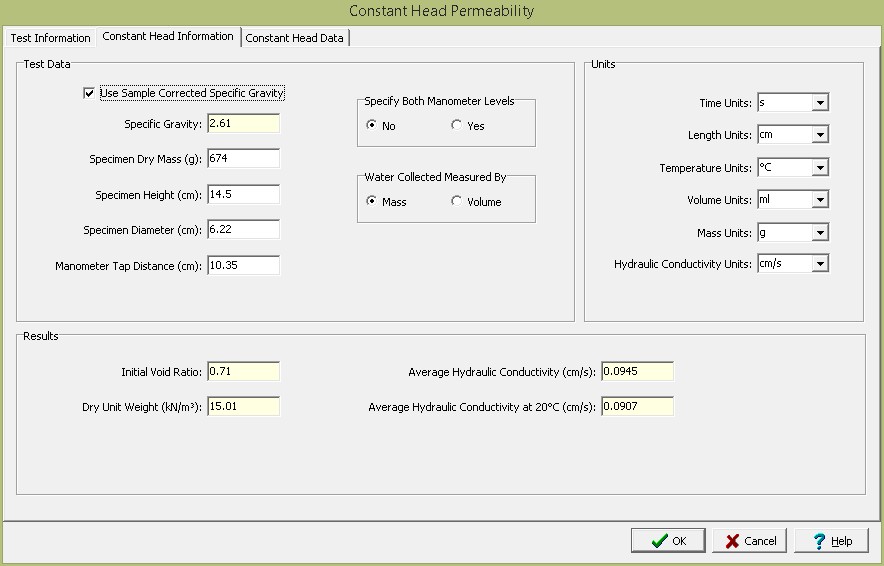

This tab is used to specify the constant head test information and results.





The following can be specified and displayed on this tab:



Test Data



Use Corrected Sample Specific Gravity: The specific gravity can either be specified or determined from a previous specific gravity test. Check this box to use the specific gravity from a previous specific gravity test. If there is no previous specific gravity test for this sample, this box will not be shown.



Specific Gravity: If the User Corrected Sample Specific Gravity box is checked this is the previously determined specific gravity, otherwise this is used to specify the specific gravity to the nearest 0.01 value.



Specimen Dry Mass: This is the dry mass of the specimen. It is used to calculate the dry unit weight and initial void ratio.



Specimen Height: This is used to specify the specimen height.



Specimen Diameter: This is used to specify the specimen diameter.



Manometer Tap Distance: This is the distance between the manometers.



Specify Both Manometer Levels: The manometer levels for both manometers or the difference in levels can be specified on the data tab.



Water Collected Measured By: The quantity of water discharged (collected) can either be measured by mass or volume.



Units



Time Units: This is used to select the units for time.



Length Units: This is used to select the units for length.



Temperature Units: This is used to select the units for temperature.



Volume Units: This is used to select the units for volume.



Mass Units: This is used to select the units for mass.



Hydraulic Conductivity Units: This is used to select the units for hydraulic conductivity.



Results



Initial Void Ratio: This is the calculated initial void ratio.



Dry Unit Weight: This is the calculated dry unit weight.



Average Hydraulic Conductivity: This is the calculated average hydraulic conductivity.



Average Hydraulic Conductivity at 20°C: This is the average hydraulic conductivity corrected to 20°C (68°F) using the viscosity of the water and test temperature.
