Results Tab

<< Click to Display Table of Contents >>

Navigation:  Chapter 9 Geotechnical Data Management > Geotechnical Tests > Entering Test Data > Soil and Aggregates Tests > Direct Shear > Data Entry >

Results Tab

Previous pageReturn to chapter overviewNext page

This tab is used to specify the results of the test.

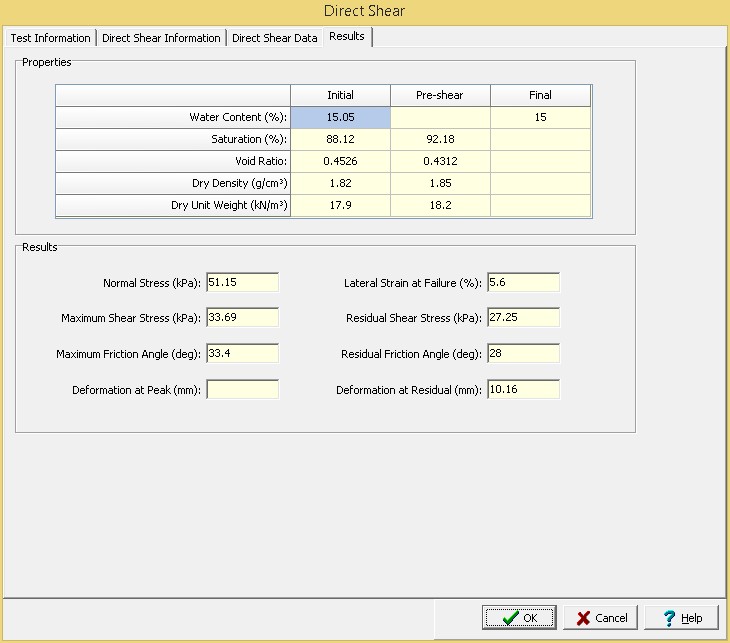

clip40565



Properties



Water Content: This is the calculated initial and final gravimetric water content.



Saturation: This is the calculated initial and pre-shear saturation.



Void Ratio: This is the calculated initial and pre-shear void ratio.



Dry Density: This is the calculated initial and pre-shear wet density.



Dry Unit Weight: This is the calculated initial and pre-shear dry unit weight.





Results



Normal Stress: This is the calculated normal stress when the normal load is a constant.



Lateral Strain at Failure: This is the calculated lateral strain when failure occurred.



Maximum Shear Stress: This is the calculated maximum shear stress.



Residual Shear Stress: This is the calculated residual shear stress.



Maximum Friction Angle: This is the calculated friction angle at the maximum shear stress.



Residual Friction Angle: This is the calculated residual friction angle at the end of the test.



Deformation at Peak: This is the lateral deformation at the maximum shear stress.



Deformation at Residual: This is the lateral displacement at the end of the test.
