Editing the Graph Layout

Previous pageReturn to chapter overviewNext page

The layout of existing graphs on a template can be editing by:



clicking on the graph object on the sidebar and then selecting Edit Layout from the popup menu

clicking on the graph on the template and then selecting Edit Layout from the popup menu



clip40162

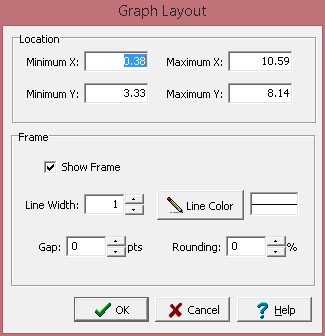

The following can be edited on this form:



Location: This is used to specify the location of the graph on the template in the same units as the template page units (inches or millimeters).



Frame Border: This is used to specify whether to draw a border around the graph. If a border is being drawn, the width, color, and rounding of the border line can be specified.
