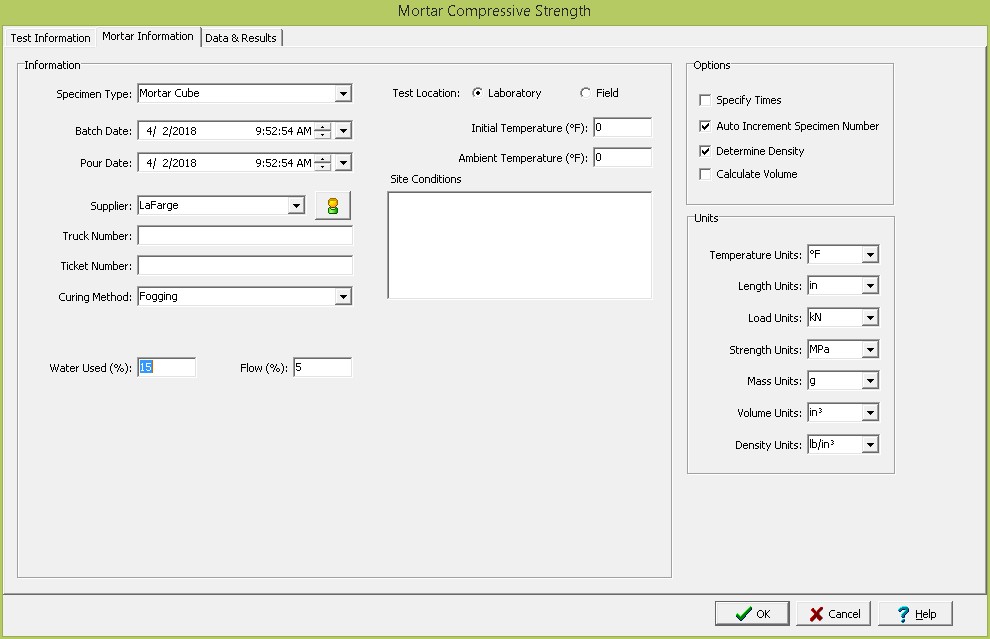

This tab is used to specify the information for the concrete specimens.





The following can be entered and displayed on this tab:



Information



Specimen Type: This is used to select the type of specimen. It can either be mortar cube or mortar cylinder.



Batch Date: This is used to specify the date and time the mortar was batched.



Pour Date: This is used to specify the date and time the mortar was poured.



Supplier: This is used to select the mortar supplier from a predefined list of suppliers. To get detailed information about the supplier click on the button on the right.



Truck Number: This is used to specify the truck number delivering the mortar.



Ticket Number: This is used to specify the ticket number for the mortar.



Curing Method: This is used to select the curing method from a predefined list of curing methods.



Water Used: This is used to specify the water used to the nearest 0.1%.



Flow: This is used to specify the flow to the nearest 1%.



Test Location: This is used to select the test location, either laboratory or field.



Initial Temperature: This is used to specify the initial temperature.



Ambient Temperature: This is used to specify the ambient temperature.



Site Conditions: This is used to describe the site conditions.



Options



Specify Times: Check this box to specify the times of the compressive strength measurements.



Auto Increment Specimen Number: Check this box to automatically increment the specimen number for compressive strength measurements.



Determine Density: Check this box to calculate the density for each compressive strength measurement.



Calculate Volume: If the density is being determined, check this box to calculate the volume based on the specify dimensions otherwise the volume can be specified.



Units



Temperature Units: This is used to select the units for temperature.



Length Units: This is used to select the units for length.



Load Units: This is used to select the units for load.



Strength Units: This is used to select the units for strength.



Mass Units: This is used to select the units for mass.



Volume Units: If the density is being determined, this is used to select the units for volume.



Density Units: If the density is being determined, this is used to select the units for density.
