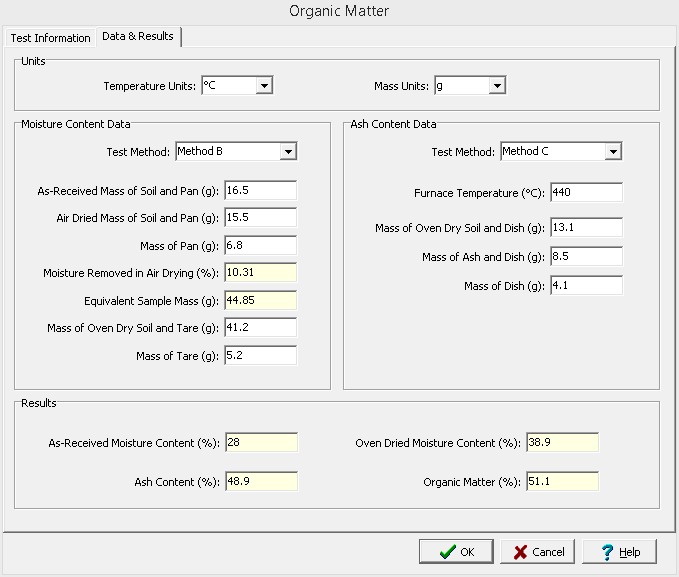

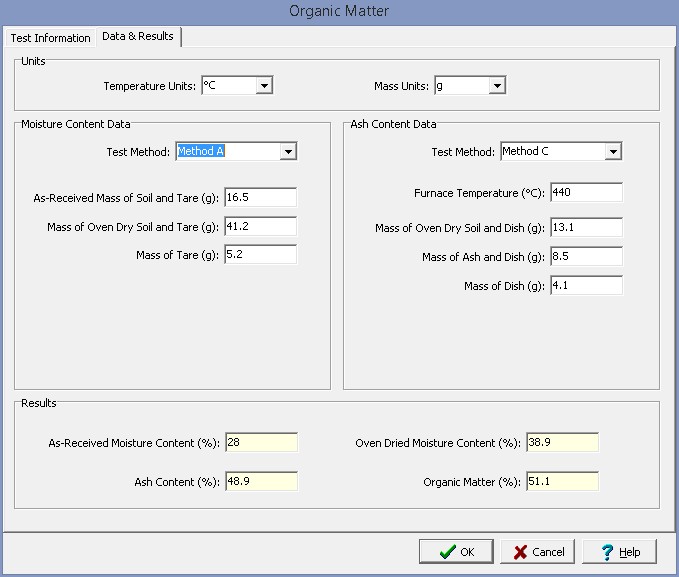

This tab is used to specify the data and results of the test.



clip40354



clip40355



Units



Temperature Units: This is used to select the units for temperature.



Mass Units: This is used to select the units for mass.



Moisture Content Data



Test Method: This is used to select the test method for determining the moisture content.



As-Received Mass of Soil and Pan: If the test method is Method B, this is the as-received mass of the soil and pan.



Air Dried Mass of Soil and Pan: If the test method is Method B, this is the mass of the soil and pan after air drying.



Mass of Pan: If the test method is Method B, this is the mass of the pan used for air drying.



Moisture Removed in Air Drying: If the test method is Method B, this is the calculated percentage of moisture removed during air drying.



Equivalent Sample Mass: If the test method is Method B, this is the calculated amount of air-dried sample equivalent to 50 g of as-received sample.



As-Received Mass of Soil and Tare: If the test method is Method A, this is the as-received mass of the soil and tare.



Mass of Oven Dry Soil and Tare: This is the mass of the oven dried soil and tare.



Mass of Tare: This is the mass of the tare used in the oven drying.



Ash Content Data



Test Method: This is used to select the test method for determining the ash and organic matter.



Furnace Temperature: This is used to specify the muffle furnace temperature. For Method C the recommended temperature is 440°C and for Method D the recommended temperature is 750°C.



Mass of Oven Dry Soil and Dish: This is the mass of the oven dried soil and dish.



Mass of Ash and Dish: This is the mass of the ash and the dish after heating in the muffle furnace.



Mass of Dish: This is the mass of the dish used in the muffle furnace.



Results



As-Received Moisture Content: This is the moisture content as a percentage of the as-received mass.



Oven Dried Moisture Content: This is the moisture content as a percentage of the oven dried mass.



Ash Content: This is the percentage of ash content.



Organic Matter: This is the percentage of organic matter.
