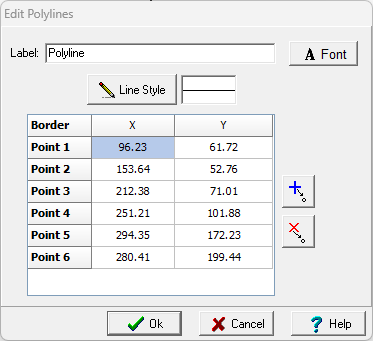

After a polyline has been created or selected for editing the form below will be displayed.





The following information can be displayed on this form:



Label: This is an optional label for the polyline.



X and Y Position: This is the position of the points of the polyline.



Line Style: This is the style of line used to draw the polyline.



Fill Color: Click this button to adjust the color of the fill.



The buttons on the right side of the form can be used to add and remove points in the polyline.
