Open the Examples project and open Case 8.





General Tab





On the General tab the Darcy velocity is set to zero for pure diffusion. The concentrations can either be calculated at specified times or the time of the maximum concentration can be found. In this example the concentrations will be calculated at 5 times: 3, 6, 9,

12, and 15 years.

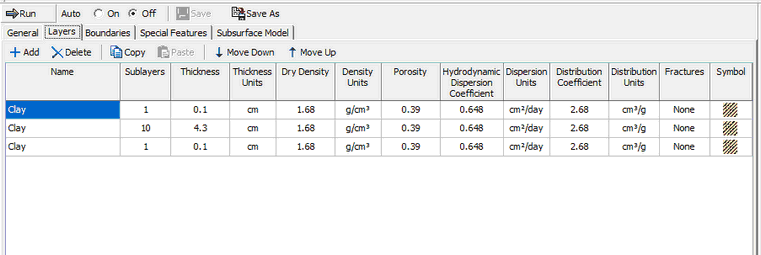

Layers Tab





There are no fractures in these layers. For pure diffusion even if there were fractures it should be modelled as if the soil was unfractured, since there would be no flow in the fractures for pure diffusion.





Boundaries Tab





In this example, the top boundary has a finite mass and the bottom boundary is represented as a zero flux layer.





Special Features



The initial concentration profile for this example is specified using the Special Features tab.





Initial Concentration Profile





To specify the initial concentration profile, check the Initial Concentration Profile box on the Special Features tab.
