<< Click to Display Table of Contents >> Navigation:  Chapter 4 Models > Importing Output Data > Creating an Imported Dataset

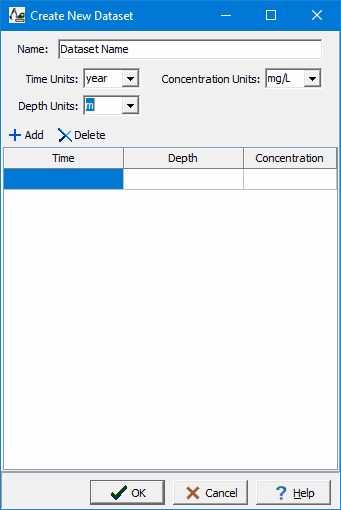

Data can also be imported into the model by creating a dataset and entering the data. To create a new data select File > New > Imported Dataset.The Create New Dataset form will be displayed.





The following can be specified on this form:



Name: This is the name to use for the imported data. It will show up in the legend for the charts.



Time Units: This is used to select the time units for the imported data.



Depth Units: This is used to select the depth units for the imported data.



Concentration Units: This is used to select the concentration units for the imported data.



Import Table



The time, depth, and concentration data to import can be entered in the Import Table. At the top of the table there are buttons to add and delete a data point.



When all of the data points have been entered press the Ok button to create the dataset.
