Deformation vs Time Graph Options

Previous pageReturn to chapter overviewNext page

clip40327

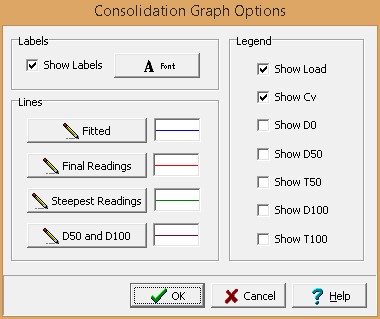

The Deformation vs Time graph has the following options.



Labels



Show Labels: Check this box to show labels for D0, D50, T50, D100, and T100 on the graph.



Font: Click on this button to change the font for the labels.



Lines



Fitted: Click this button to adjust the width, color, and style of the line fitted to the data.



Final Readings: Click this button to adjust the width, color, and style of the straight line fitted to the final readings.



Steepest Readings: Click this button to adjust the width, color, and style of the straight line fitted to the steepest readings.



D50 and D100: Click this button to adjust the width, color, and style of the line drawn to D50, T50 and D100, T100.



Legend



The legend is a box in the graph usually in the top right area that shows results for the load increment.



Show Load: Check this box to show the load in the legend.



Show Cv: Check this box to show the coefficient of consolidation in the legend.



Show D0: Check this box to show the D0 in the legend.



Show D50: Check this box to show the D50 in the legend.



Show T50: Check this box to show the T50 in the legend.



Show D100: Check this box to show the D100 in the legend.



Show T100: Check this box to show the T100 in the legend.
