Vertical Stress Graph Options

Previous pageReturn to chapter overviewNext page

clip40328

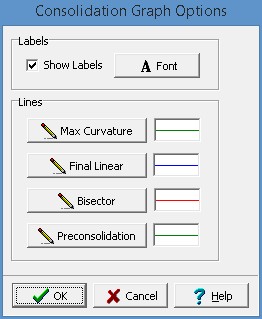

The Void Ratio vs Vertical Stress or Vertical Strain vs Vertical Stress graph has the following options.



Labels



Show Labels: Check this box to show labels on the graph.



Font: Click on this button to change the font for the labels.



Lines



Max Curvature: Click this button to adjust the width, color, and style of the straight line fitted to the tangent of the maximum curvature.



Final Linear: Click this button to adjust the width, color, and style of the straight line fitted to the final linear results.



Bisector: Click this button to adjust the width, color, and style of the bisector straight line.



Preconsolidation: Click this button to adjust the width, color, and style of the vertical line drawn for the preconsolidation pressure.
