Title blocks are used to display data for a test that has a one to one relationship; for example, the project number or date of the test. Some of this data can be automatically filled in by the program from previously entered information (ex. sample number) and some will need to be entered for each test by the user. The title block consists of a one or more rows or columns of titles and data.

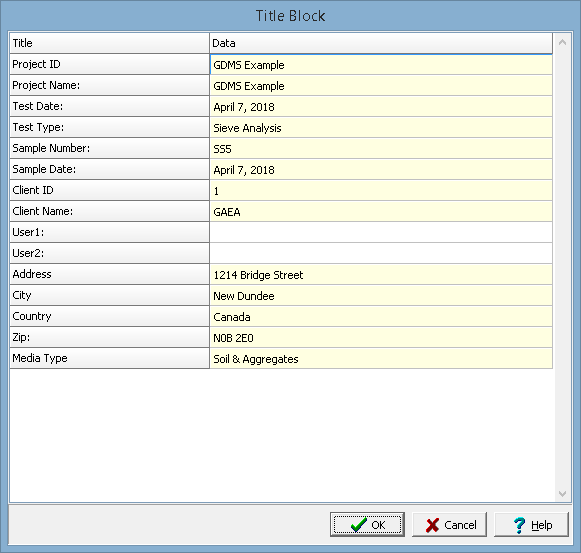

To edit the title block data select Edit > Title Block or click on the title block. The Title Block form will be display.





Some of the title block data is automatically filled using the project and sample data and is shown in light yellow. Data that can be entered is shown in white. After entering the data click on the Ok button to close the form and update the test display.
