Data & Results Tab

Previous pageReturn to chapter overviewNext page

This tab is used to specify the test data and show the test results.

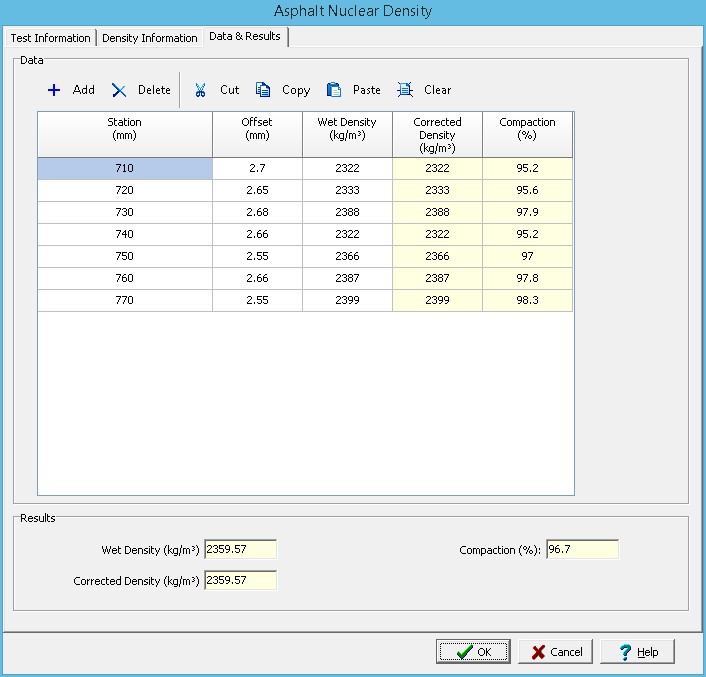

clip40462



The following can be entered and displayed on this tab:



Toolbar



The buttons on the toolbar at the top of the tab can be used to enter, copy, and paste the data.



Add: This is used to add a new set of measurements at the selected row.



Delete: This is used to delete the measurements on the selected row.



Cut: This will cut (remove) all of the measurements and store them in the clipboard.



Copy: This will copy all of the measurements and store them in the clipboard.



Paste: This will paste the information in the clipboard into the measurement grid. It can be used to copy measurement data from Excel, by selecting and copying the axial force and axial displacement columns in Excel and pasting them into the grid.



Clear: This will remove all of the measurements.



Measurement Data



Each set of measurements may consist of the information below depending on the options selected on the previous tab.



Station: This used to specify the station for the measurement.



Offset: This is used to specify the offset for the measurement.



Voids: If the Record Percent Voids option is selected on the previous tab, this is used to enter the voids for the measurement.



Wet Density: This is the measured wet density.



Corrected Density: If the Show Corrected Density option is selected on the previous tab, this shows the calculated corrected density. It is obtained by adding the Conversion Factor to the wet density.



Compaction: If the Record Compaction option is selected on the previous tab, this is used to specify the compaction. If the Calculate Compaction option is selected, this shows the calculated compaction for the measurement.



Results



Wet Density: This shows the average wet density of the measurements.



Corrected Density: If the Show Corrected Density option is selected on the previous tab, this shows the average corrected density.



Compaction: This shows the average compaction of the measurements.
