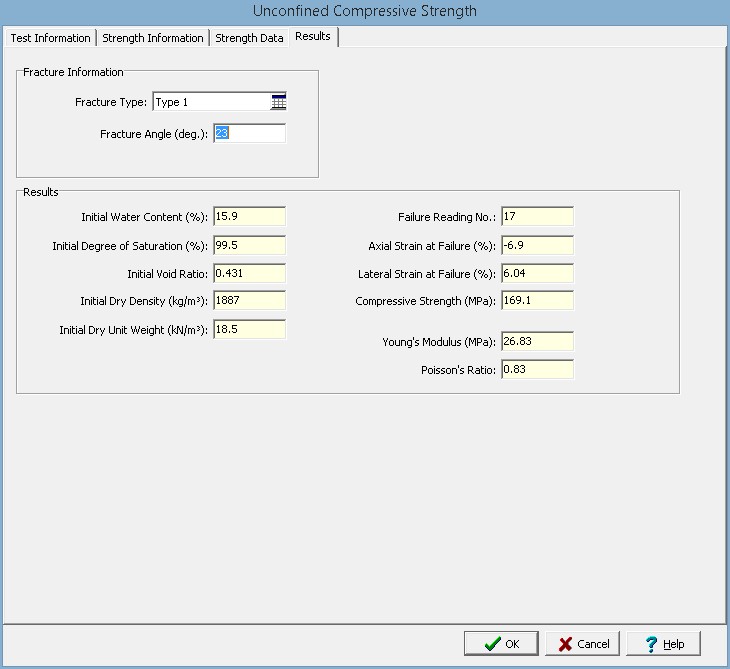

This tab is used to specify the results of the test.





The following information and results are shown on this tab:



Fracture Information



Fracture Type: This is used to select the type of fracture from a predefined list of fracture types. When the button on the right is clicked on it can be selected from a list of fracture types and symbols.



Fracture Angle: This is used to specify the angle of fracture of the sample.





Results



Initial Water Content: This is the calculated initial water content.



Initial Saturation: This is the calculated initial saturation.



Initial Void Ratio: This is the calculated initial void ratio.



Initial Dry Density: This is the calculated initial dry density.



Initial Dry Unit Weight: This is the calculated initial dry unit weight.



Failure Reading No.: This is the reading at which failure occurred. It is the reading when the maximum force was recorded.



Axial Strain at Failure: This is the axial strain at the failure reading.



Lateral Strain at Failure: This is the lateral strain at the failure reading.



Compressive Strength: This is the calculated compressive strength.



Young's Modulus: This is the calculated Young's modulus using the method selected on the Strength Information tab.



Poisson's Ratio: This is the calculated Poisson's ratio using the method selected on the Strength Information tab.
