This tab is used to specify the test data and show the test results.

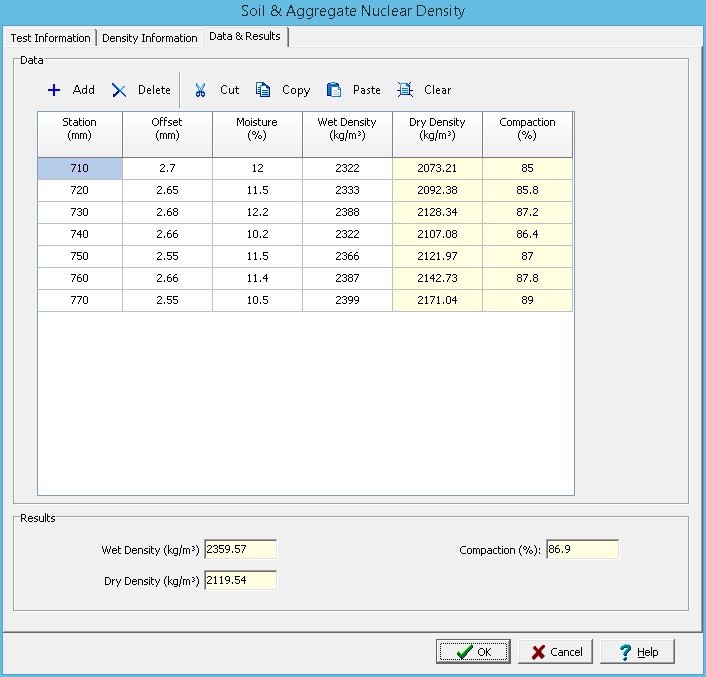

The following can be entered and displayed on this tab:



Toolbar



The buttons on the toolbar at the top of the tab can be used to enter, copy, and paste the data.



Add: This is used to add a new set of measurements at the selected row.



Delete: This is used to delete the measurements on the selected row.



Cut: This will cut (remove) all of the measurements and store them in the clipboard.



Copy: This will copy all of the measurements and store them in the clipboard.



Paste: This will paste the information in the clipboard into the measurement grid. It can be used to copy measurement data from Excel, by selecting and copying the axial force and axial displacement columns in Excel and pasting them into the grid.



Clear: This will remove all of the measurements.



Measurement Data



Each set of measurements may consist of the information below depending on the options selected on the previous tab.



Station: This used to specify the station for the measurement.



Offset: This is used to specify the offset for the measurement.



Moisture: If the Calculate Moisture Percentage option is selected on the previous tab, this is used to enter the measured moisture.



Moisture (%): If the Calculate Moisture Percentage option is not selected on the previous tab, this is used to enter the measured percentage moisture. If the Calculate Moisture Percentage option is selected on the previous tab, this shows the calculated percentage of moisture.



Wet Density: This is the measured wet density.



Dry Density: If the Calculate Dry Density option is selected on the previous tab, this shows the calculated dry density. If the Calculate Dry Density option is not selected on the previous tab, this is used to enter the measured dry density.



Compaction: If the Record Compaction option is selected on the previous tab, this is used to specify the compaction. If the Calculate Compaction option is selected, this shows the calculated compaction for the measurement.



Results



Wet Density: This shows the average wet density of the measurements.



Dry Density: This shows the average dry density of the measurements.



Compaction: This shows the average compaction of the measurements.
