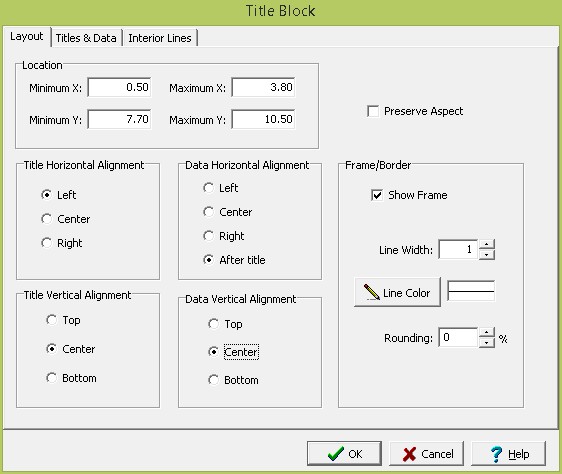

The following information can be specified on the Layout tab:



Location: This is used to specify the location of the title block on the template in the same units as the template page units (inches or millimeters).



Preserve Aspect: If this box is checked the aspect ratio of the title block boundary will be preserved when the location is adjusted.



Title Horizontal Alignment: This is used to select the horizontal alignment of the titles. The titles can be aligned left, center, or right.



Data Horizontal Alignment: This is used to select the horizontal alignment of the data. The data can be aligned left, center, right, of after the title (data is placed to the left of the end of the title).



Title Vertical Alignment: This is used to select the vertical alignment of the titles. The titles can be aligned top, center, or bottom.



Data Vertical Alignment: This is used to select the vertical alignment of the data. The data can be aligned top, center, or bottom.



Frame Border: This is used to specify whether to draw a border around the title block. If a border is being drawn, the width, color, and rounding of the border line can be specified.
