After a Cross-section Legend display has been created or selected the Cross-section Legend form below will be displayed. This form has two tabs for Layout and Format.

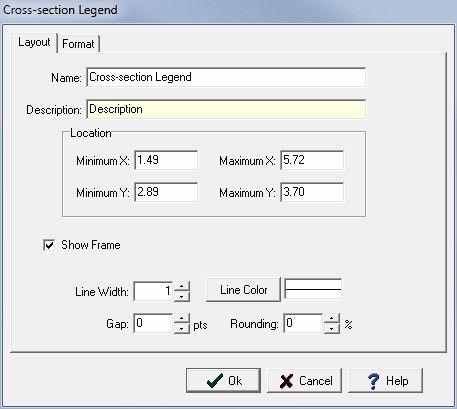

Layout



clip1144



The following information can be edited on this tab:



Name: This is the name of the data element.



Minimum X: This is the lower boundary of the display in page coordinates.



Maximum X: This is the upper boundary of the display in page coordinates.



Minimum Y: This is the left boundary of the display in page coordinates.



Maximum Y: This is the right boundary of the display in page coordinates.



Show Frame: Check to draw a box around the data element.



Frame Line Width: This is the width of the line used to draw the frame.



Frame Line Color: This is the color of the line used to draw the frame.



Frame Gap: This is the gap between the frame and the drawing portion of the data element.



Frame Rounding: This is the percentage of rounding to use at the frame corners. Zero will draw a square corner.

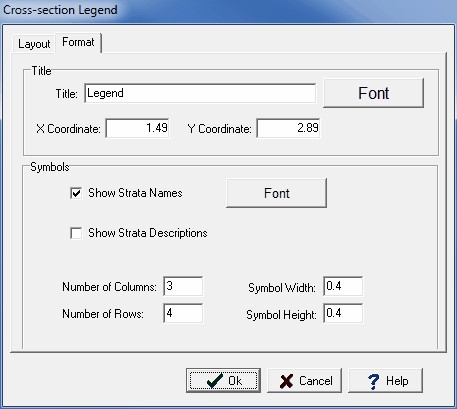

Format



clip0145



The following information can be edited on this tab:



Title: This is the title to show in the legend. It can be left blank.



Title Font: Click on this button to change the font for the title.



Title X Coordinate: This is the horizontal position of the title.



Title Y Coordinate: This is the vertical position of the title.



Show Strata Names: Check to show the strata names in the legend.



Strata Font: Click this button to change the font used for the strata.



Number of Columns: This is the number of columns to divide the strata into in the legend.



Number of Rows: This is the number of rows to divide the strata into in the legend.



Symbol Width: This is the width in page units to use for the strata symbol.



Symbol Height: This is the height in page units to use for the strata symbol.
