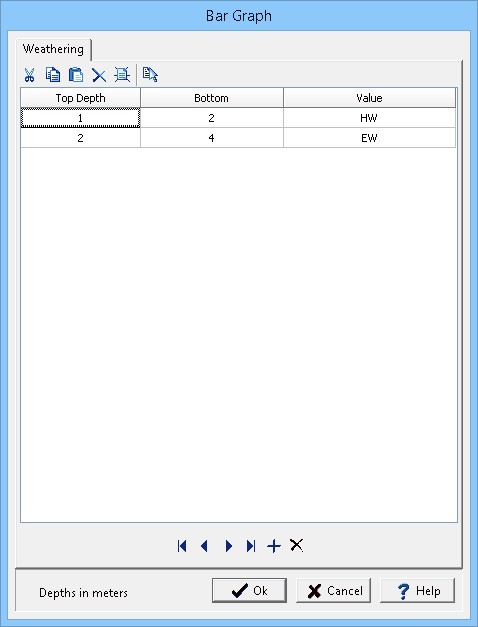

If the graph type is bargraph, the Bar Graph form will be displayed.



(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)



The following information can be entered and edited using this form:



Top Depth: This is the top depth of the data point in the same units as set in the template.



Bottom Depth: This is the bottom depth of the data point in the same units as set in the template.



Value: This is the value of the data point in the same units as set in the template.  If the graph uses a text scale, the text value can be selected from a drop down list of values.





The toolbar at the top of the form can be used for the following functions:



Cut: Moves the selected text to the clipboard.



Copy: Copies the selected text to the clipboard.



Paste: Copies the clipboard to the selected cell.



Delete: Deletes the selected text.



Clear: Clears the entire dataset.



Use Existing: Uses an existing dataset for this dataset.
