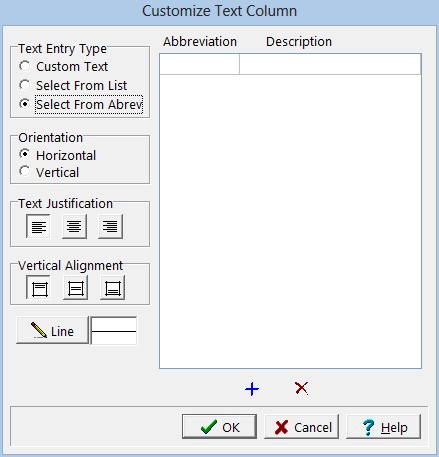

The text interval column style can be changed using the Customize button on the Columns tab. When the Customize button is pressed the Customize Text Interval Column form will be displayed.



(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)



The Customize Text Column form can be used to set the following:



Text Entry Type: This is used to set how the text will be entered for the column. The text can be custom text, selected from a list, or selected from an abbreviation. If is is selected from a list or abbreviation, the text items can be added or deleted for the list on the right side of the form.



Orientation: The text can be oriented either horizontally or vertically. This orientation only applies to text lines, and will not apply to memos.



Justification: The text can be justified left, center, or right within the column. This justification only applies to text lines, and will not apply to memos entered in the text column.



Vertical Alignment: This is the vertical alignment of the text in the interval.



Line Style: This is the line style to use for the top and bottom of the text interval. To change the line style, press the Line Style button. A Line Properties form will be displayed. This form can be used to set the line style, width, and color.
