Columns displayed as interval text can be linked to other interval text display columns so that the depths for the data only have to entered once. The Link Name in the Template column is used to link interval text columns.



There are several ways to edit linked interval text data, either:



•click on the interval text data column on the log

•double click on the interval text data object on the sidebar

•select Edit > Interval Text Data Name

•or select Popup > Interval Text Data Name



The menu item that will appear in the Edit, Popup, and sidebar will have the name of the column specified in the template for the log. For example, if the template specified the name of the column as "Remarks", the menu items will also be named "Remarks".This is used to distinguish between different interval text data columns within the same template.

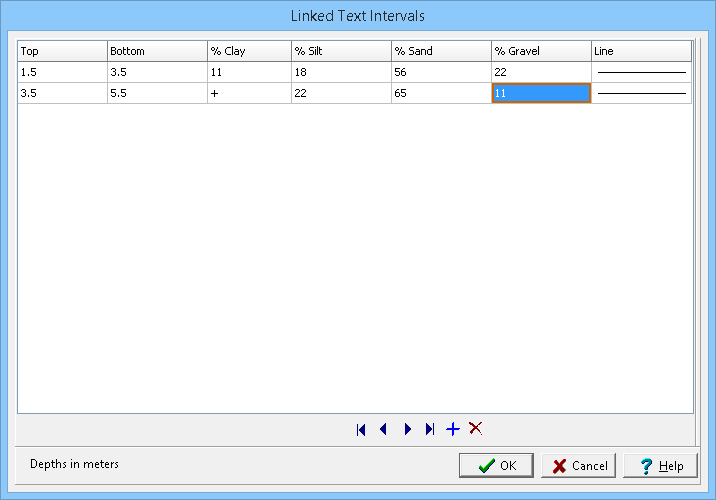

After this the Linked Text Intervals form will be displayed. This form has columns for the top and bottom depths, and for each linked interval text column.

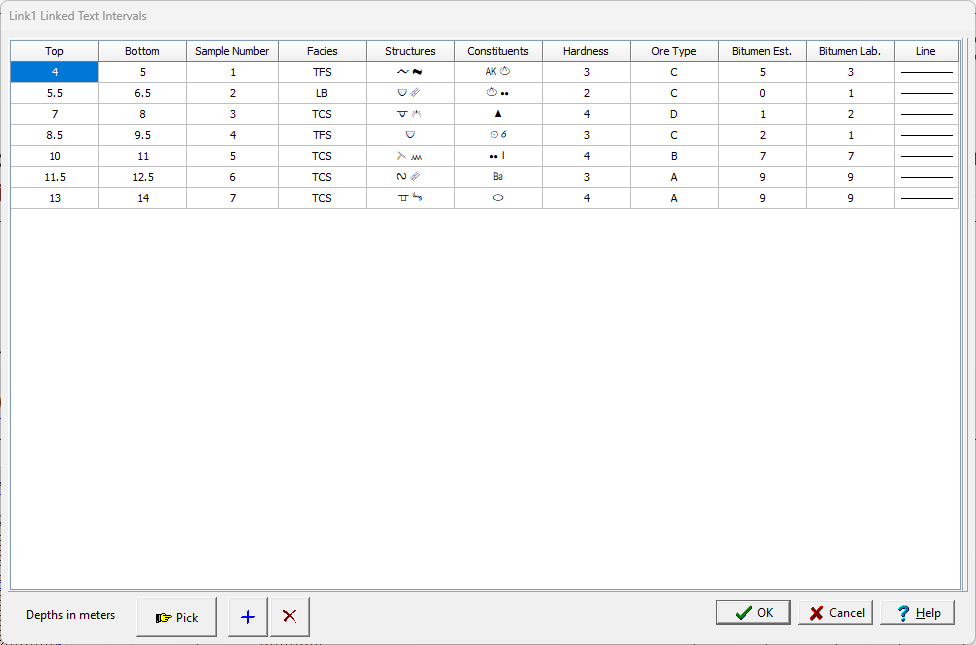

(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)



The following information can be edited on this form:



Top: This is the top depth for the text interval in the same units as set in the template.



Bottom: This is the bottom depth for the text interval in the same units as set in the template.



Text: This is the text to display for each linked interval text column. The default alignment of the text is set in the template.
