(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)

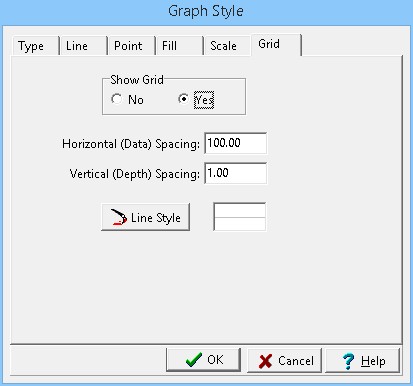

The following can be edited in this tab:



Show Grid: Check this box to draw horizontal and vertical grid lines.



Horizontal (Data) Spacing: This is the horizontal spacing of the grid lines, usually the same as the scale increment. If set to zero, the scale increment will be used. If Show Grid is set to no, this field will not appear.



Vertical (Depth) Spacing: This is the vertical spacing of the grid lines, usually the same as the scale increment. If set to zero, the scale increment will be used. If Show Grid is set to no, this field will not appear.



Line Style: This is the line style to use to draw the grid. When the Line Style button is pressed, the Line Properties form will be displayed. This form can be used to set the line style, width, and color.
