Data Tab

Previous pageReturn to chapter overviewNext page

The Data tab is used to specify the charts that will be included in the report chart.

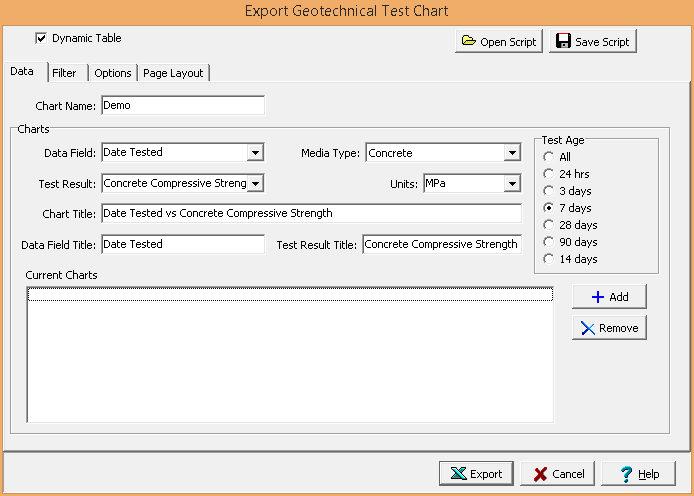

clip40629



The following can be specified on this tab:



Chart Name: This is name of the chart for the data.



Data Field: This is used to select the data field that will be displayed in the chart.



Media Type: This is used to select the media type for the chart. The media type selected will determine the test result that can be used for the chart.



Test Result: This is used to select the test result to be displayed.



Units: This is used to select the units for the test result selected.



Chart Title: This is the title of the chart. If it is blank it will be filled in when the data field and parameter are specified.



Data Field Title: This is used to specify the title of the data field (X) axis.



Test Result Title: This is used to specify the title of the test result (Y) axis.



Test Age: If the media type is concrete, this is used to select the test ages to include.



Add: Click on the Add button to add the chart to the list of charts to be included.



Remove: Click the Remove button to remove the selected chart from the list.
