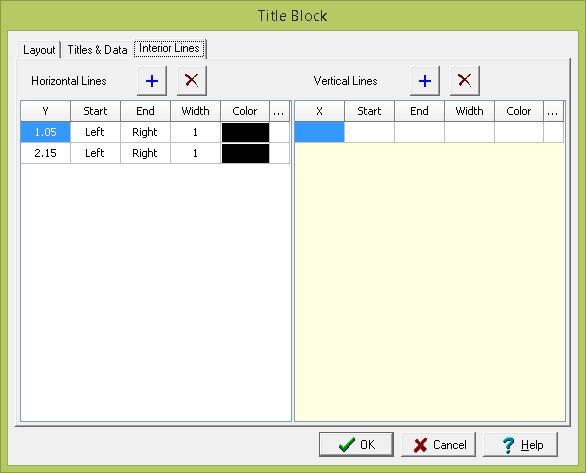

This tab is used to specify horizontal and vertical lines for the Title Block. The lines can be added and deleted using the buttons at the top of the tab. For each line the following can be specified:



X: For vertical lines this is used to specify the horizontal position of the line on the template.



Y: For horizontal lines this is used to specify the vertical position of the line on the template.



Start: This is used to specify the start of the line. For horizontal lines they can either be started on the left side of the Title Block or the position of the start can be specified numerically.And for vertical lines they can either be started on the top side of the Title Block or the position of the start can be specified numerically.



End: This is used to specify the end of the line. For horizontal lines they can either end at the right side of the Title Block or the position of the end can be specified numerically.And for vertical lines they can either end at the bottom side of the Title Block or the position of the end can be specified numerically.



Width: This is used to specify the width of the line.



Color: Click this button to select the color for the line.
