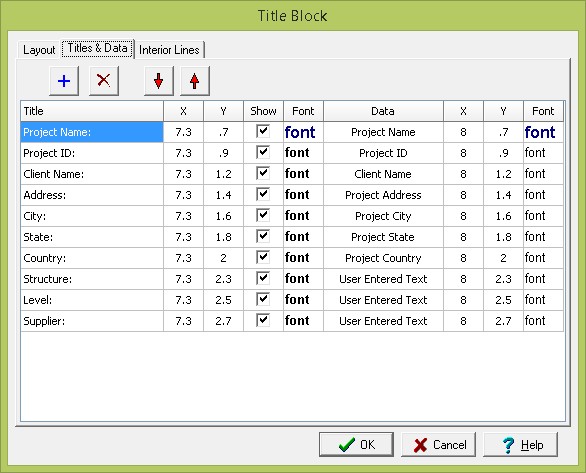

This tab is used to specify the titles and data to display in the Title Block. Titles and data can be added and deleted using the buttons at the bottom of the tab. For each title and data the following can be specified:



Title: This is used to specify the text to use for the title.



Title X: This is used to specify the horizontal position of the title on the template in page units.



Title Y: This is used to specify the vertical position of the title on the template in page units.



Show: Check this box to display the title in the Title Block. There is the option to use the title only for prompting for information when the Title Block is filled in later.



Title Font: When this column is clicked on a button will appear. Click this button to select the font for the title.



Data: This is used to select the type of data to display for this title.Several types of data can be automatically filled in when the template is used. Alternatively, the text can be filled in at the time the template is used by selecting "User Specified Text".



Data X: This is used to specify the horizontal position of the data on the template in page units.



Data Y: This is used to specify the vertical position of the data on the template in page units.



Data Font: When this column is clicked on a button will appear. Click this button to select the font for the data.
