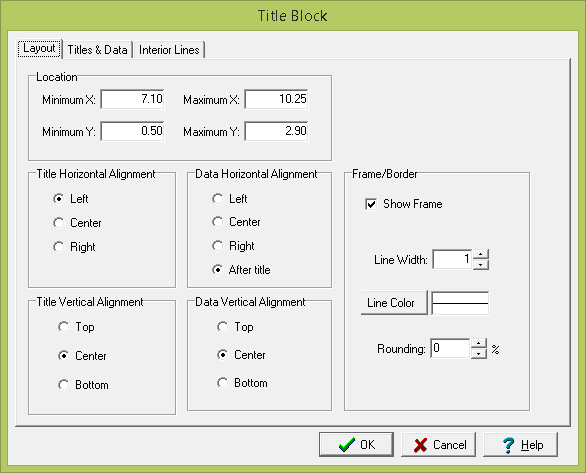

The following information can be entered on this tab:



Minimum X: This is the lower boundary in page coordinates.



Maximum X: This is the upper boundary in page coordinates.



Minimum Y: This is the left boundary in page coordinates.



Maximum Y: This is the right boundary in page coordinates.





Title Horizontal Alignment: This is used to select the horizontal alignment of the titles.



Data Horizontal Alignment: This is used to select the horizontal alignment of the data.



Title Vertical Alignment: This is used to select the vertical alignment of the titles.



Data Vertical Alignment: This is used to select the vertical alignment of the data.





Show Frame: Check to draw a box around the title block.



Frame Line Width: This is the width of the line used to draw the frame.



Frame Line Color: This is the color of the line used to draw the frame.



Frame Gap: This is the gap between the frame and the drawing portion of the title block.



Frame Rounding: This is the percentage of rounding to use at the frame corners. Zero will draw a square corner.
