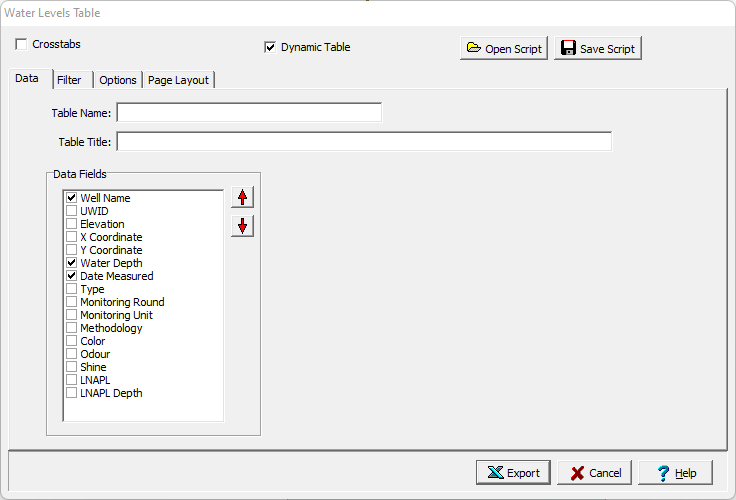

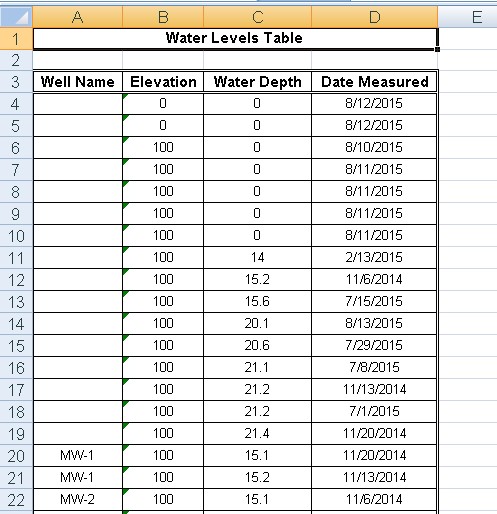

Water level tables can be used to list water levels for selected wells as shown in the spreadsheet below. To create a new water levels table for a project select File > Export > Excel Tables > Water Levels. The Water Levels Table form will be displayed.



At the top of the form there are buttons for opening and saving scripts. Scripts are used to save the settings in a form and can be used to generate tables with similar settings. Crosstabs are used to generate Excel spreadsheets that contain more then one table using previously stored scripts.



Tables can be either dynamic or non-dynamic. Dynamic tables are created with the latest data every time they are opened. Non-dynamic tables are static and stored in the Datastore, these tables will show the data at the time they were created.





If the Crosstabs is not checked, this form has four tabs for Data, Filter, Options, and Page Layout. The editing of the Data, Filter, Options, Page Layout, and Crosstabs tabs is the same as for a Borings/Wells table and is described in those sections.



After the information on the tabs has been entered, the Export button at the bottom of the form will export the data to an Excel spreadsheet. When the spreadsheet has been generated it will be opened in Excel.
