<< Click to Display Table of Contents >> Navigation:  Chapter 7 Stations and Sampling > Samples > Editing a Sample > Information Tab

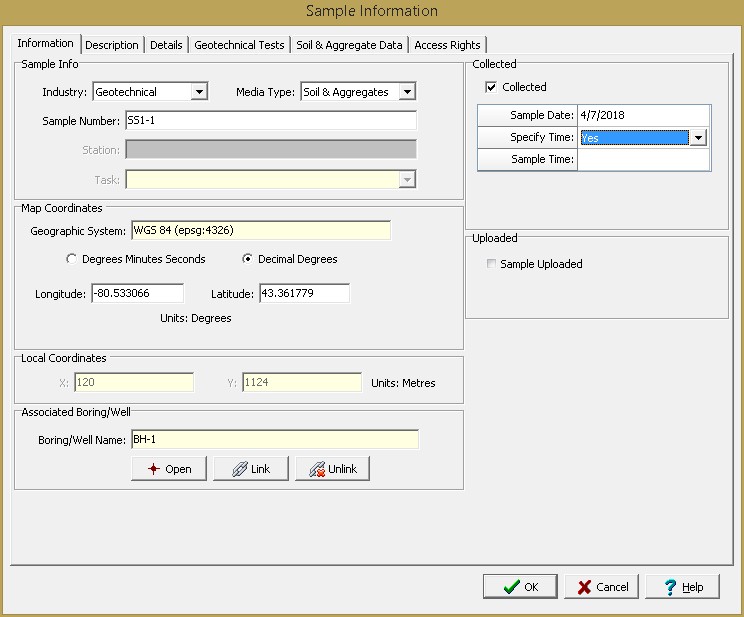

The Information tab is used to specify the general information for the sample.





The following information can be specified on this tab:



Sample Info



Industry: This is used to select the whether the sample is for environmental tests, geotechnical tests, or both.



Media Type: This is used to select the media type for the sample. The Media Data tab will be different for each media type selected



Station: If the sample is associated with a station, the station will be shown. This can not be edited.



Task: If the sample is associated with a task, the task will be shown. This can not be edited.



Map Coordinates



If it is a local project the following are not displayed.



Coordinate System: This is the coordinate system specified when the project is created. It can be either a geographic or projected coordinate system. The default is the WGS 1984 geographic coordinate system used internally by the program to store location data.



Degrees Minutes Seconds or Decimal Degrees: If the coordinate system is geographic, this can be used to display the coordinates in either degrees, minutes, and seconds or decimal degrees.



Longitude: For a geographic coordinate system this is the longitude in either degrees, minutes, and seconds or decimal degrees.



Latitude: For a geographic coordinate system this is the latitude in either degrees, minutes, and seconds or decimal degrees.



Easting: For a projected coordinate system this is the x coordinate in map units.



Northing: For a projected coordinate system this is the y coordinate in map units.



Local Coordinates



Local X-Coordinate: This is the x coordinate in local units. If the project is georeferenced the local coordinates are calculated automatically.



Local Y-Coordinate: This is the y coordinate in local units.  If the project is georeferenced the local coordinates are calculated automatically



Associated Boring/Well



Boring/Well Name: If the station is associated with a boring or well, it can be linked to the station. If a boring or well has been linked to the station it can be opened in the WinLoG module by clicking on the Open button.



Collected



Collected: This should be checked if the sample has been collected.



Sample Date: If the sample is not continuous and has been collected, this is used to select the collection date.



Start Date: If the sample is continuous and has been collected, this is used to select the start date.



End Date: If the sample is continuous and has been collected, this is used to select the end date.



Specify Time: If the sample has been collected, this is used to indicate whether the time of collection should be specified.



Sample Time: If the time of collection is being specified and the sample is not continuous this is used to select the time.



End Time: If the time of collection is being specified and the sample is continuous this is used to select the time.



Sample Time: If the time of collection is being specified and the sample is continuous this is used to select the time.



Uploaded



Sample Uploaded: If the sample was uploaded from EDMS Field this will be checked. This can not be edited.



Date Uploaded: If the sample was uploaded, this displays the date it was uploaded from EDMS Field.
