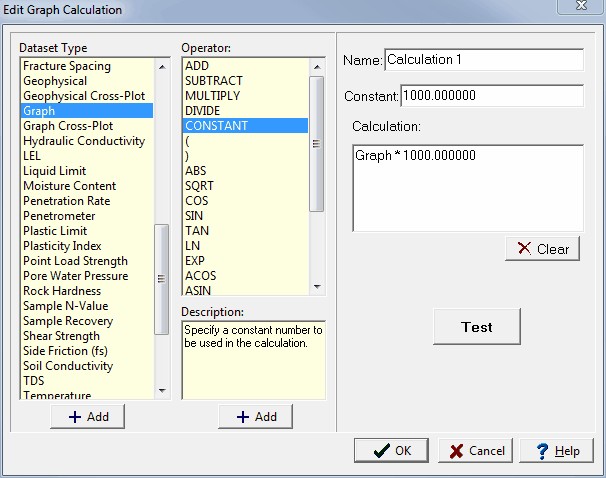

(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)



The following can be edited on this form:



Name: This is the unique name of the macro.



Description: This is the description of the macro.



Calculation: This is the calculation to be performed. The calculation can consist of one or more datasets, operators, and constants. At least one dataset must be included in the calculation. To add a dataset to the calculation select it in the list and click on the Add button and to add an operator select it in the list and click on the Add button. Constant can be entered directly in the calculation. After the calculation has been entered click on the Test button to ensure that it is mathematically consistent.
