Samples

Previous pageReturn to chapter overviewNext page

clip0140

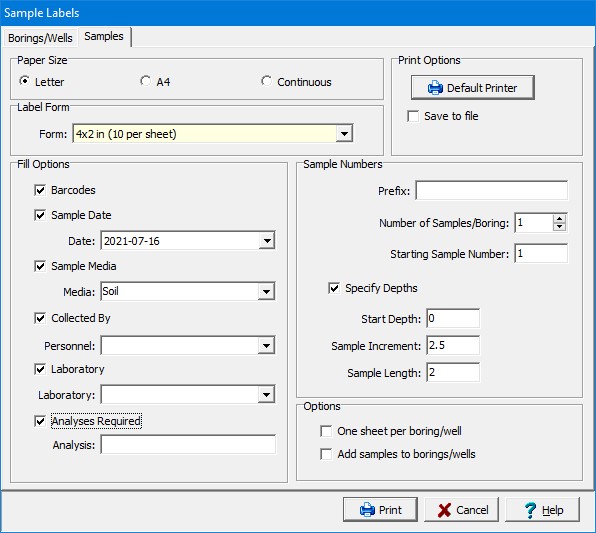

This tab is used to specify the type and format of the samples and sample labels. The following can be specified on this tab:



Paper Size: This is the size of paper to use for the labels. It can be letter, A4, or continuous.



Label Form: This is the size of the individual label. The choices will change depending on the paper size.





Fill Options



Barcodes: Check to include a barcode on the label. The 2D barcode will include all of the sample information on the label and can be later scanned.



Sample Date: Check to include the sample date on the label. If this is checked the sample date can be selected.



Sample Media: Check to include the sample media on the label. If this is checked the sample media can be selected.



Collected By: Check to include the sampling personnel on the label. If this is checked the personnel can be selected. The personnel that can be selected are specified in Tools > Lists > Personnel.



Laboratory: Check to include the laboratory on the label. If this is checked the laboratory can be selected. The laboratories that can be selected are specified in Tools > Lists > Lab Info > Laboratories.



Analyses Required: Check to include the required analyses on the label. If checked the analysis can be specified.





Print Options



Default Printer: The labels will be printed on the default Word printer. Click this button to change the default Word printer.



Save to file: Check to save the labels to a Word file instead of printing them.



Number of Copies: This is the number of copies of the labels to print. If the labels are being saved to a file this field will not appear.





Sample Numbers



Prefix: This is the text to appear at the beginning of each sample name. The sample name is comprised of the prefix followed by the sample number.



Number of Samples/Station: This is the number of samples to generate for each boring or well.



Starting Sample Number: This is the starting sample number.



Specify Depths: If the sample media is soil or rock the sample depths can be specified.



Start Depth: If the depths are being specified this is the start depth for the sampling.



Sample Increment: If the depths are being specified this is the depth increment between samples.



Sample Length: If the depths are being specified this is the length of the sample.





Options



One sheet per boring/well: Check this to start a new sheet of labels for each boring or well.



Add samples to borings/wells: Check this to create the samples in each of the borings or wells. If the sample labels are being printed as part of a task this option is not available.
