Type Tab

Previous pageReturn to chapter overviewNext page

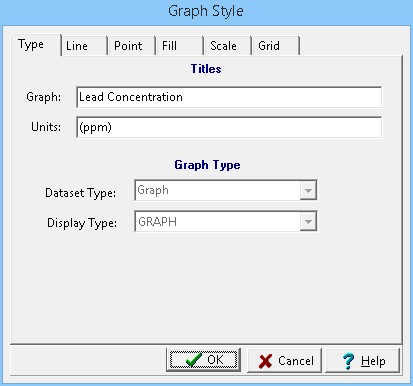

clip14439

(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)



The following can be edited on this tab:



Graph Title: This is the title to use for the graph. The graph title will be displayed in the same area as the column title. It is recommended that either the graph title or column title be used, and not both.



Units Title: This is the units of the graph. The unit title will be displayed below the graph title.



Dataset Type: This is set when the column is created and can not be changed.



Display Type: This is set when the column is created and can not be changed.
