Editing a Well

<< Click to Display Table of Contents >>

Navigation:  Chapter 5  Boring/Wells > Borings/Wells > Editing a boring/well > Depth Related Data > Well Construction Data >

Editing a Well

Previous pageReturn to chapter overviewNext page

Well data can be entered individually for each log or by using a well macro. Well macros can be used to quickly add standard well components, water level information, and text annotation to a log. Macros can be used for single well installation, complex nested wells, above-ground well casings, etc.



The data for a well consists of:



hole diameter and layout,

well components,

water level measurements, and annotation.



There are several ways to edit the well data, either:



click on the well on the log

double click on the Well object on the sidebar

select Edit > Well Data > Well Name

or select Popup > Well Name

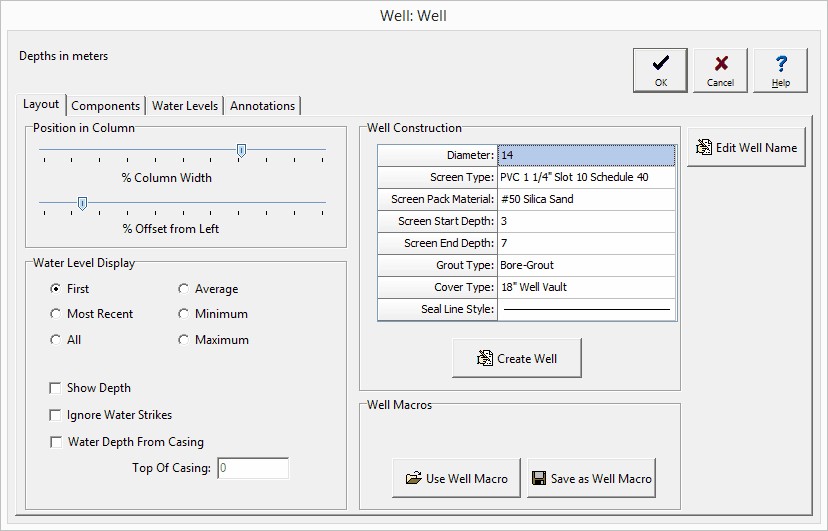

After this the Well Data form will be displayed. This form has four tabs; one for the layout, one for the components, one for the water levels, and one for the annotation.



clip14481

(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)
