Introduction

Seismic data has long been a cornerstone of subsurface exploration, enabling geoscientists to visualize geological structures, identify hydrocarbon reservoirs, map aquifers, and support environmental investigations. For decades, seismic surveys were recorded and stored in analog formats such as paper seismic sections, film reels, and microfiche. While these legacy datasets contain immense geological value, their analog nature limits accessibility, integration, and long-term usability.

Today, the geoscience industry is undergoing a digital transformation. Organizations are increasingly investing in converting analog seismic profiles into digital seismic datasets that can be integrated into modern interpretation platforms, machine learning workflows, and cloud-based data ecosystems.

This article provides a comprehensive overview of how analog seismic profiles are converted into digital seismic data, including workflows, technologies, challenges, quality control practices, and the strategic benefits of digitization.

Understanding Analog Seismic Profiles

Analog seismic profiles are typically 2D seismic reflection records that display the response of subsurface geological layers to seismic energy.

Historically, these profiles were:

Printed as long paper sections using plotters
Recorded on photographic film
Stored on microfiche for archival purposes

These profiles often include:

Wiggle traces representing seismic amplitudes
Variable density shading
Time scales (in milliseconds)
Shot points or distance markers
Survey identifiers and annotations

While visually rich, analog seismic profiles are not directly usable in modern digital workflows.

Why Convert Analog Seismic Data to Digital?

Converting analog seismic profiles into digital formats unlocks a wide range of benefits.

Improved accessibility

Digital data can be stored, searched, and accessed instantly from centralized databases or cloud platforms.

Integration with modern software

Digital seismic datasets can be imported into interpretation software such as Petrel, Kingdom, and OpendTect.

Enhanced interpretation capabilities

Digital data enables advanced analysis techniques, including attribute analysis, inversion, and machine learning.

Data preservation

Digitization protects seismic data from physical degradation and loss.

Cost efficiency

Reusing existing seismic data eliminates the need for expensive re-acquisition.

These advantages make digitization a critical step in modern subsurface data management strategies.

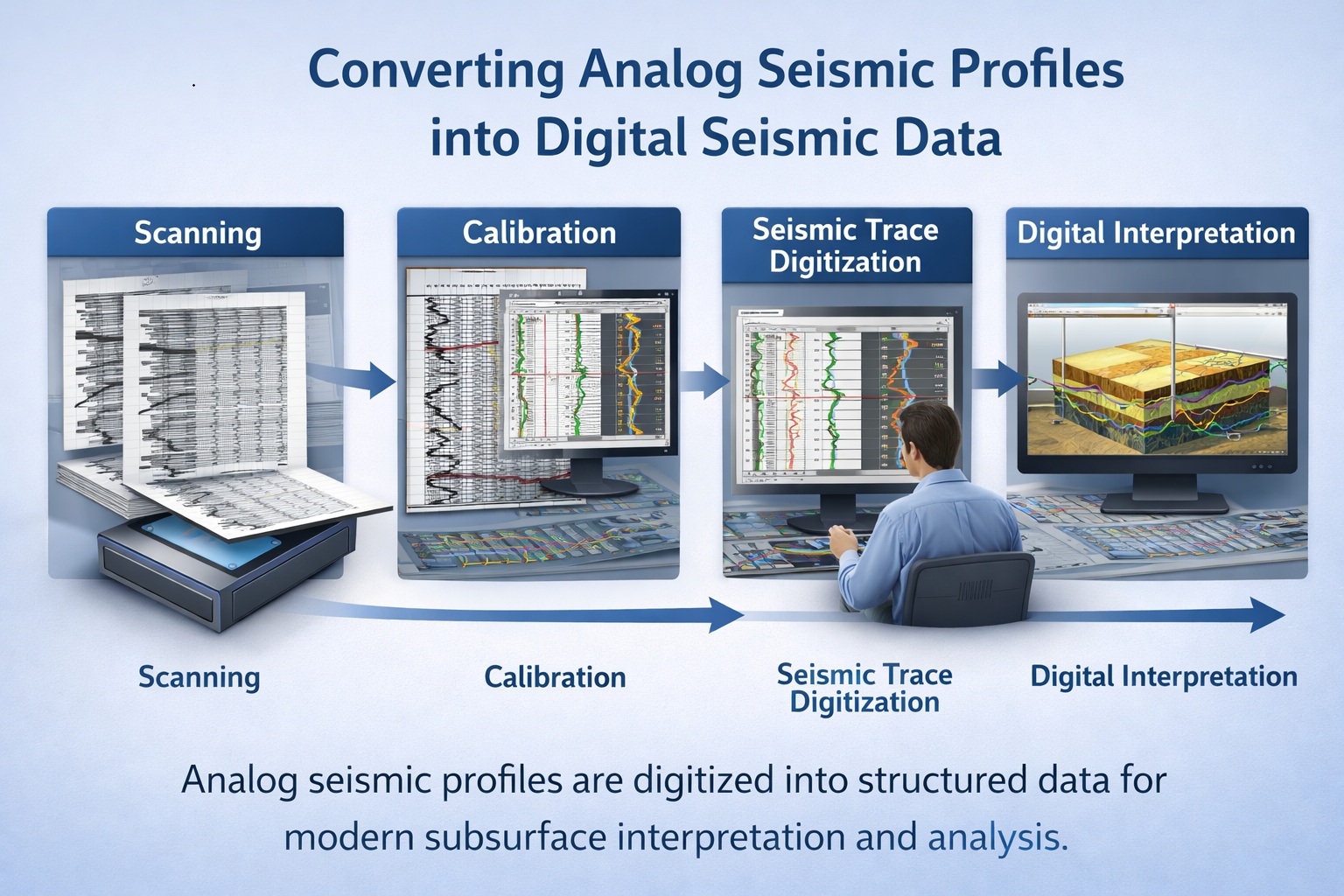

The Conversion Workflow: From Analog to Digital

The process of converting analog seismic profiles into digital datasets involves several carefully controlled steps.

1. Data Inventory and Assessment

The first step is identifying and cataloging available seismic profiles.

This includes:

Locating physical records
Assessing condition and quality
Identifying associated metadata
Prioritizing datasets for digitization

A well-organized inventory ensures efficient project execution.

2. High-Resolution Scanning

Analog seismic profiles are digitized by scanning them into high-resolution images.

Key scanning considerations include:

Resolution of 300–600 DPI
Use of large-format scanners
Preservation of grayscale or color information
Minimizing geometric distortion

Lossless formats such as TIFF are typically used to maintain image quality.

3. Image Preprocessing

Scanned images often require enhancement before further processing.

Preprocessing steps include:

Deskewing and alignment
Contrast adjustment
Noise reduction
Background cleaning

These improvements help clarify seismic traces and prepare the data for digitization.

4. Calibration of Axes

Calibration is essential for converting image pixels into meaningful seismic data.

This involves mapping:

Vertical axis → time (milliseconds)
Horizontal axis → distance or shot points

Reference points such as scale bars and grid lines are used for calibration.

Accurate calibration ensures that digitized data align with real-world coordinates.

5. Seismic Trace Digitization

The core of the conversion process is extracting numerical data from the seismic image.

Several approaches are used:

Manual digitization

Technicians trace seismic reflections manually.

Semi-automated digitization

Software assists in identifying and tracing seismic features.

Automated digitization

Advanced algorithms extract seismic traces using image processing and AI techniques.

The method chosen depends on data quality and project requirements.

6. Data Reconstruction

Once traces are digitized, they are reconstructed into digital seismic datasets.

This may include:

Rebuilding amplitude values
Creating seismic trace files
Structuring data into standard formats

The goal is to produce data compatible with interpretation software.

7. Quality Control and Validation

Quality control ensures that digitized data accurately represent the original seismic profiles.

QC procedures include:

Visual comparison with original images
Verification of calibration accuracy
Detection of digitization artifacts
Cross-checking with nearby seismic data

Combining automated checks with expert review yields the best results.

Output Formats for Digital Seismic Data

Digitized seismic data can be stored in several industry-standard formats.

SEG-Y

The most widely used format for seismic data storage and exchange.

SEG-D

Used for field data acquisition.

Image-based formats

High-resolution images used for interpretation overlays.

ASCII formats

Used for simplified data representation and analysis.

Selecting the appropriate format depends on the intended use of the data.

Challenges in Seismic Data Conversion

Converting analog seismic profiles into digital data presents several challenges.

Data quality issues

Old seismic profiles may suffer from fading, noise, or physical damage.

Complex trace patterns

Overlapping traces and dense wiggle patterns can complicate digitization.

Incomplete metadata

Missing survey parameters can hinder accurate calibration.

Interpretation uncertainty

Digitization may introduce ambiguity in areas with weak or noisy signals.

Addressing these challenges requires a combination of technology and expert interpretation.

Role of Quality Control in Seismic Digitization

Quality control is essential for ensuring the reliability of digitized seismic data.

Effective QC includes:

Multi-stage validation

Quality checks at each stage of the workflow.

Automated anomaly detection

Algorithms identify spikes, gaps, and inconsistencies.

Expert review

Geophysicists verify geological plausibility.

Cross-validation

Comparison with well logs and other datasets.

Robust QC processes ensure that digitized data can be trusted for interpretation.

Integrating Digital Seismic Data into Modern Workflows

Once converted, digital seismic data can be integrated into advanced geoscience workflows.

Interpretation software

Platforms such as Petrel and Kingdom allow detailed subsurface analysis.

3D modeling

Digitized 2D profiles can be incorporated into 3D geological models.

Machine learning

Digital datasets can be used to train AI models for pattern recognition.

Cloud-based systems

Data can be shared across teams and accessed remotely.

This integration significantly enhances the value of seismic data.

Applications Across Industries

Digitized seismic data supports a wide range of applications.

Oil and gas exploration

Identifying reservoirs and structural traps.

Mining

Mapping geological structures associated with mineral deposits.

Environmental studies

Assessing subsurface conditions for remediation projects.

Infrastructure development

Evaluating ground conditions for construction projects.

Carbon capture and storage

Identifying suitable geological formations for CO₂ storage.

Leveraging AI and Machine Learning

The digitization of seismic data enables the use of AI technologies.

Applications include:

Automated fault detection
Horizon picking
Seismic facies classification
Predictive modeling

Historical seismic data provides valuable training datasets for these models.

Preserving Legacy Data for Future Generations

Analog seismic profiles represent decades of exploration effort and investment.

Digitization ensures that this knowledge is preserved and remains accessible.

Without digitization, valuable data may be lost due to:

Physical degradation
Obsolete storage formats
Organizational changes

Preserving these datasets supports long-term scientific and industrial progress.

Best Practices for Successful Conversion

Organizations should follow best practices to ensure successful seismic digitization projects.

Use high-quality scanning equipment

Ensures accurate capture of seismic details.

Maintain data integrity

Preserve original scans before processing.

Document metadata thoroughly

Essential for calibration and interpretation.

Implement robust QC workflows

Ensures reliable results.

Involve experienced geoscientists

Critical for validating digitized data.

Following these practices improves project outcomes and data usability.

Future Trends in Seismic Digitization

Technological advancements are transforming seismic digitization.

AI-driven digitization

Automated extraction of seismic traces.

Cloud-based processing

Scalable and collaborative workflows.

Integration with digital twins

Combining seismic data with real-time subsurface models.

Enhanced visualization

Advanced 3D and immersive interpretation tools.

These trends will continue to enhance the value of digitized seismic data.

Conclusion

Converting analog seismic profiles into digital seismic data is a critical step in modernizing geoscience workflows. By transforming legacy datasets into structured digital formats, organizations can unlock valuable geological insights, improve interpretation accuracy, and support advanced analytical techniques.

The digitization process involves careful scanning, preprocessing, calibration, trace extraction, and rigorous quality control. While challenges exist, the benefits far outweigh the effort, enabling organizations to maximize the value of their historical seismic archives.

As the industry continues to embrace digital transformation, the conversion of analog seismic data will play a central role in bridging the gap between past exploration efforts and future subsurface discoveries.
