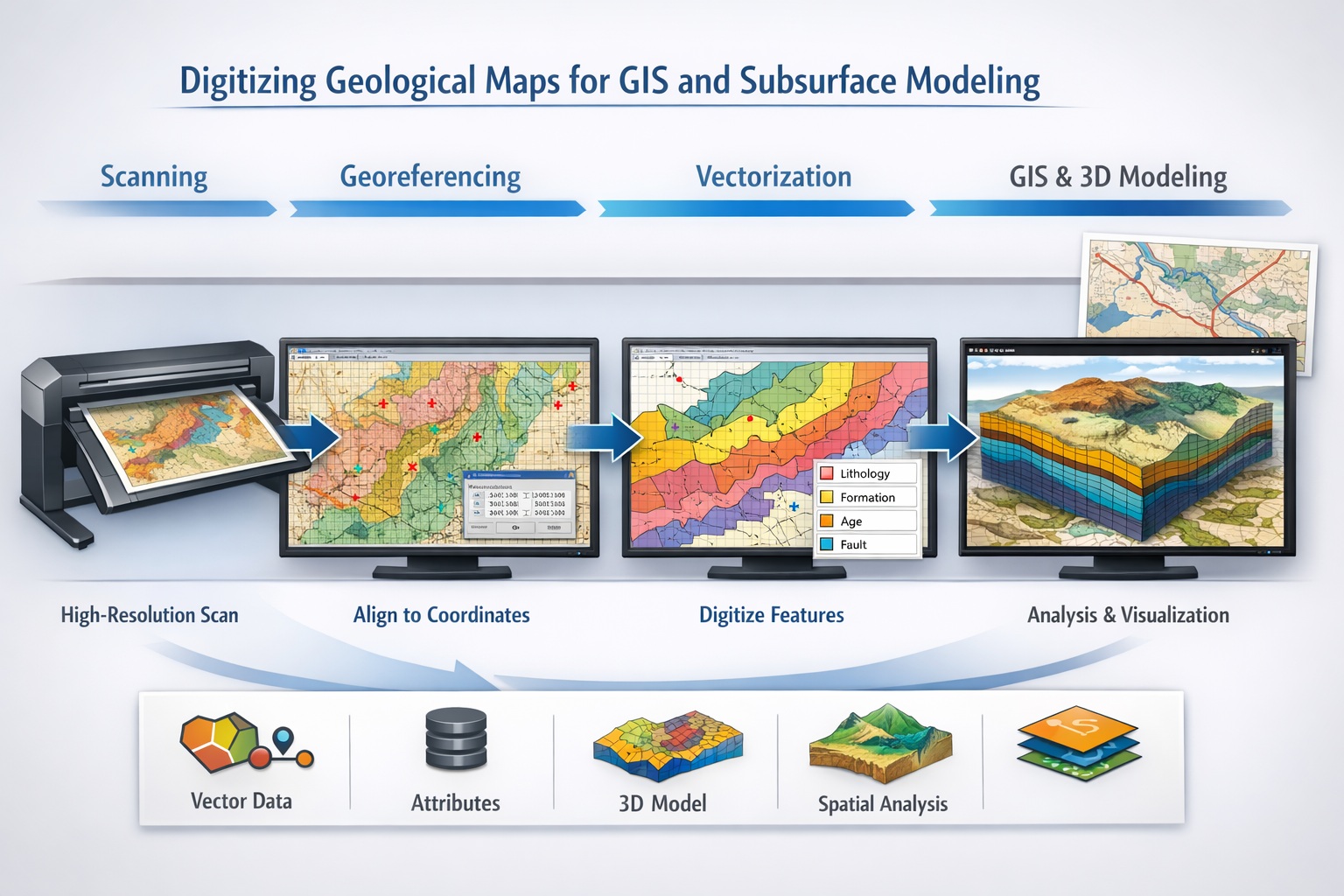

Geological map digitization workflow showing scanning, georeferencing, vectorization, and integration into GIS for subsurface modeling.

Written by

GAEA Technologies

in

Share the knowledge

Introduction

Geological maps are foundational tools in geoscience, providing critical insights into lithology, structural features, stratigraphy, and surface expressions of subsurface conditions. For decades, these maps were created as paper documents—carefully drafted, annotated, and archived by geologists in government surveys, oil and gas companies, mining firms, and environmental consultancies.

Today, vast collections of these maps exist in analog formats, often stored in archives and rarely used to their full potential. As the geoscience industry moves toward digital workflows, GIS integration, and advanced subsurface modeling, the need to digitize geological maps has become increasingly important.

Digitizing geological maps transforms static paper documents into dynamic, spatially referenced datasets that can be analyzed, visualized, and integrated with other geoscientific data. This article explores the methods, workflows, challenges, and best practices for digitizing geological maps for GIS and subsurface modeling, helping organizations unlock the full value of their legacy data.

The Importance of Geological Map Digitization

Geological maps contain a wealth of information that supports a wide range of applications.

Key information captured in geological maps

  • Rock types and lithology
  • Structural features such as faults and folds
  • Stratigraphic boundaries
  • Surface expressions of subsurface geology
  • Geomorphological features

When digitized, these maps become powerful tools for:

GIS-based spatial analysis

Digital maps can be integrated into GIS platforms to support spatial queries, overlays, and modeling.

Subsurface modeling

Digitized surface geology provides essential constraints for building 3D geological models.

Resource exploration

Geological maps guide exploration for hydrocarbons, minerals, and groundwater.

Environmental and engineering applications

They support site assessments, hazard analysis, and infrastructure planning.

Digitization enables these datasets to be searchable, shareable, and interoperable.

Challenges of Working With Analog Geological Maps

Despite their value, analog geological maps present several challenges.

Physical degradation

Over time, maps may suffer from:

  • Fading ink
  • Paper deterioration
  • Tears and folds
  • Color distortion

Lack of georeferencing

Paper maps are not inherently tied to coordinate systems, making spatial analysis difficult.

Limited accessibility

Maps stored in archives are difficult to access and share.

Inconsistent formats

Historical maps may use different symbols, scales, and projections.

Digitization addresses these challenges by converting maps into standardized digital formats.

Overview of the Digitization Workflow

Digitizing geological maps involves several stages:

  1. Map preparation
  2. High-resolution scanning
  3. Image preprocessing
  4. Georeferencing
  5. Vectorization and digitization
  6. Attribute assignment
  7. Quality control and validation
  8. Integration into GIS and modeling systems

Each stage plays a critical role in ensuring data accuracy and usability.

Step 1: Map Preparation

Before scanning, maps must be carefully prepared.

Preparation tasks include:

  • Flattening folded maps
  • Cleaning dust and debris
  • Repairing tears where possible
  • Identifying map scale and projection

Technicians should also document metadata such as:

  • Map title
  • Author or organization
  • Publication date
  • Coordinate system (if available)

This information is essential for later stages of digitization.

Step 2: High-Resolution Scanning

Scanning converts the physical map into a digital image.

  • Resolution: 300–600 DPI
  • Format: TIFF (lossless)
  • Color mode: Full color for maps with complex symbology

High-resolution scanning ensures that fine details such as linework and labels are preserved.

After scanning, images should be reviewed for:

  • Distortion or skew
  • Missing edges
  • Blurring or artifacts

Step 3: Image Preprocessing

Scanned images often require enhancement before digitization.

Common preprocessing techniques:

  • Deskewing and alignment
  • Contrast and brightness adjustment
  • Color correction
  • Noise reduction

These steps improve the clarity of map features and facilitate accurate digitization.

Step 4: Georeferencing

Georeferencing is one of the most critical steps in map digitization.

It involves aligning the scanned map with real-world coordinates.

Process:

  1. Identify control points (e.g., intersections, landmarks, grid lines)
  2. Match these points to known coordinates
  3. Apply transformation (e.g., affine or polynomial)
  4. Validate spatial accuracy

Tools:

  • ArcGIS
  • QGIS
  • Global Mapper

Accurate georeferencing ensures that the map aligns correctly with other spatial datasets.

Step 5: Vectorization and Feature Digitization

Once georeferenced, map features are converted into vector data.

Types of features digitized:

  • Polygons (lithological units)
  • Lines (faults, contacts, boundaries)
  • Points (sample locations, wells, outcrops)

Digitization methods:

Manual digitization

Technicians trace features using GIS software.

Semi-automated digitization

Software assists with line detection and feature extraction.

Automated digitization

AI-based tools identify and digitize features.

Manual digitization is often preferred for complex geological maps due to higher accuracy.

Step 6: Attribute Assignment

Digitized features must be enriched with attribute data.

Examples:

  • Lithology type
  • Formation name
  • Age
  • Structural classification

Attributes allow for:

  • Querying and filtering data
  • Thematic mapping
  • Integration with geological models

Proper attribute assignment is essential for meaningful analysis.

Step 7: Quality Control and Validation

Quality control ensures the accuracy and reliability of digitized maps.

QC checks include:

  • Spatial accuracy verification
  • Topological consistency (no gaps or overlaps)
  • Attribute validation
  • Visual comparison with original map

Common errors:

  • Misaligned features
  • Incorrect boundaries
  • Missing attributes

Combining automated checks with expert review ensures high-quality results.

Step 8: Integration With GIS Systems

Digitized maps are integrated into GIS platforms for analysis.

Common GIS applications:

  • Overlay analysis
  • Spatial querying
  • Map visualization
  • Data sharing
  • ArcGIS
  • QGIS
  • MapInfo

Integration enables users to combine geological data with other datasets such as:

  • topography
  • satellite imagery
  • infrastructure

Role in Subsurface Modeling

Digitized geological maps play a critical role in subsurface modeling.

Applications include:

  • Building 3D geological models
  • Defining stratigraphic boundaries
  • Constraining structural frameworks
  • Supporting reservoir modeling

Surface geology provides essential input for understanding subsurface conditions.

Advanced Techniques in Map Digitization

Modern technologies are enhancing geological map digitization.

Machine learning and AI

  • Automated feature recognition
  • Classification of lithologies
  • Pattern detection

Computer vision

  • Line and boundary detection
  • Symbol recognition

Cloud-based workflows

  • Collaborative digitization
  • Centralized data storage

These technologies improve efficiency and scalability.

Common Challenges and Solutions

Challenge: Complex symbology

Solution: Use expert interpretation and standardized legends.

Challenge: Poor map condition

Solution: Apply image enhancement and restoration techniques.

Challenge: Missing metadata

Solution: Cross-reference with external sources.

Challenge: Georeferencing inaccuracies

Solution: Use multiple control points and validate results.

Benefits of Digitizing Geological Maps

Digitization offers significant advantages:

Data preservation

Protects maps from physical degradation.

Improved accessibility

Enables digital storage and sharing.

Enhanced analysis

Supports GIS and modeling workflows.

Cost savings

Reduces need for field remapping.

Integration with modern technologies

Enables AI, machine learning, and advanced analytics.

Best Practices for Geological Map Digitization

To ensure success:

  1. Use high-resolution scanning
  2. Maintain original data integrity
  3. Apply accurate georeferencing
  4. Use consistent digitization standards
  5. Perform rigorous quality control
  6. Document metadata thoroughly

These practices ensure reliable and usable datasets.

Future Trends

The future of geological map digitization includes:

AI-driven automation

Reducing manual effort.

Real-time GIS integration

Seamless data workflows.

3D and 4D modeling integration

Linking surface and subsurface data.

Digital twins

Combining geological data with real-time systems.

These advancements will further enhance the value of geological maps.

Conclusion

Digitizing geological maps is a critical step in modernizing geoscience workflows. By converting analog maps into digital, georeferenced datasets, organizations can unlock valuable geological information and integrate it into GIS and subsurface modeling systems.

The process involves careful preparation, high-resolution scanning, georeferencing, digitization, and rigorous quality control. While challenges exist, the benefits—improved accessibility, enhanced analysis, and data preservation—make digitization an essential investment.

As technology continues to evolve, digitized geological maps will play an increasingly important role in exploration, environmental management, and infrastructure development.
