Mapping the Site: GIS and Spatial Data Management in GaeaSynergy

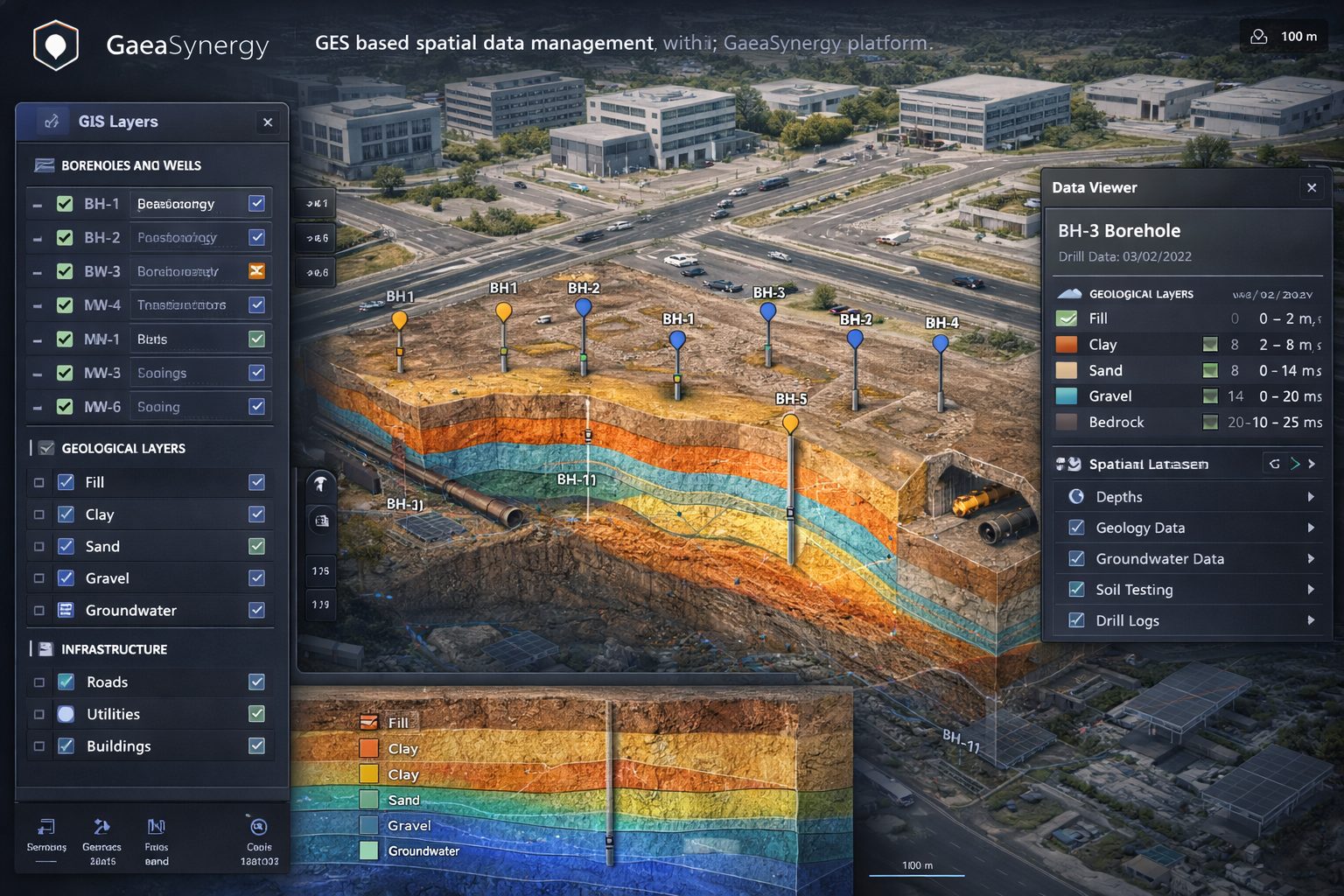

GIS map showing borehole locations, site infrastructure, and geological data layers managed within a geotechnical and environmental data platform.

Written by

GAEA Technologies

in

Share the knowledge

In geoscientific projects, data is only as good as its spatial accuracy. GaeaSynergy’s GIS Module serves as the command center for your project, providing a unified geographic interface where every piece of data—from the top of a building to a sample taken hundreds of feet underground—is precisely georeferenced.

Real-World Context with Web Map Services

The GIS module allows you to move beyond empty grids by integrating live map data:

  • WMS & Street Maps: Import Web Map Services (WMS) and standard street maps to provide immediate real-world context. This ensures your project data is perfectly aligned with property boundaries, roads, and regional infrastructure.
  • Visual Verification: Use integrated Google and Bing Street View tools to virtually inspect site access and surrounding conditions directly from the GIS interface.

Project, Borehole, and Sample Locations

Managing multiple sites is seamless with GaeaSynergy’s global mapping capabilities:

  • Centralized Project Hub: View all your projects globally on a master map. Simply hover over or click a project marker to access deep-dive data.
  • Dynamic Borehole & Sample Plotting: Boreholes and specific geotechnical/environmental samples are automatically plotted at their surveyed coordinates. You can customize icons to distinguish between different data types at a glance.

Integrating Buildings and Structures

The power of GaeaSynergy’s GIS lies in its multi-layered approach to infrastructure:

  • Above-Ground Infrastructure: Add 2D and 3D buildings to your maps to visualize how they interact with your boring locations.
  • Subsurface Objects: Map underground storage tanks (USTs), foundations, and utility corridors. Seeing these alongside your samples allows for more accurate prediction of plume migration or structural risks.

Elevation and Terrain Analysis

As shown in the Terrain Analysis Module (featured image), GaeaSynergy transforms point elevation data into continuous intelligence:

  • Gridding: Algorithms like Kriging or Inverse Distance turn scattered elevations into mathematical surfaces.
  • Contouring: Automatically generate isolines to visualize site topography, groundwater tables, or chemical gradients.

Utilization in Project Documents

Maps generated in the GIS module are foundational for professional project documentation:

  • Automated Site Maps: Export georeferenced maps directly into project reports as high-resolution figures.
  • Dynamic Document Links: Link specific map views to digital project folders, allowing stakeholders to click a document reference and be taken directly to that spatial location.
  • Regulatory Compliance: Use the precise coordinate overlays and elevation contours to meet strict reporting standards for environmental and geotechnical permit applications.

Why It Is Important

Integrating GIS with subsurface data is critical because it eliminates spatial ambiguity. By visualizing samples, structures, and boreholes in a real-world geographic context, engineers can identify high-risk “hotspots,” avoid costly utility strikes, and communicate complex geological findings to stakeholders with total clarity. Without this spatial anchor, geological data remains an isolated spreadsheet; with it, it becomes a dynamic roadmap for project success.
