Browse all 9 examples in this section. Select a log to preview it, download the supporting files, or open its detailed example page.
examples in this category

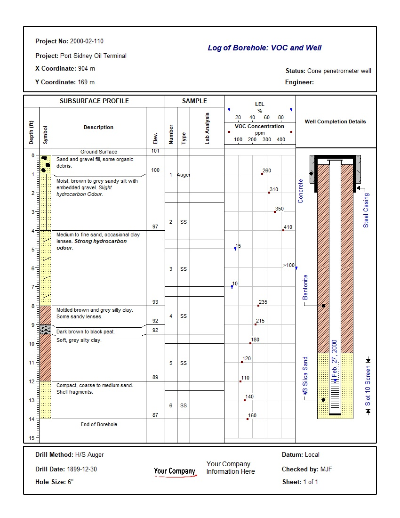

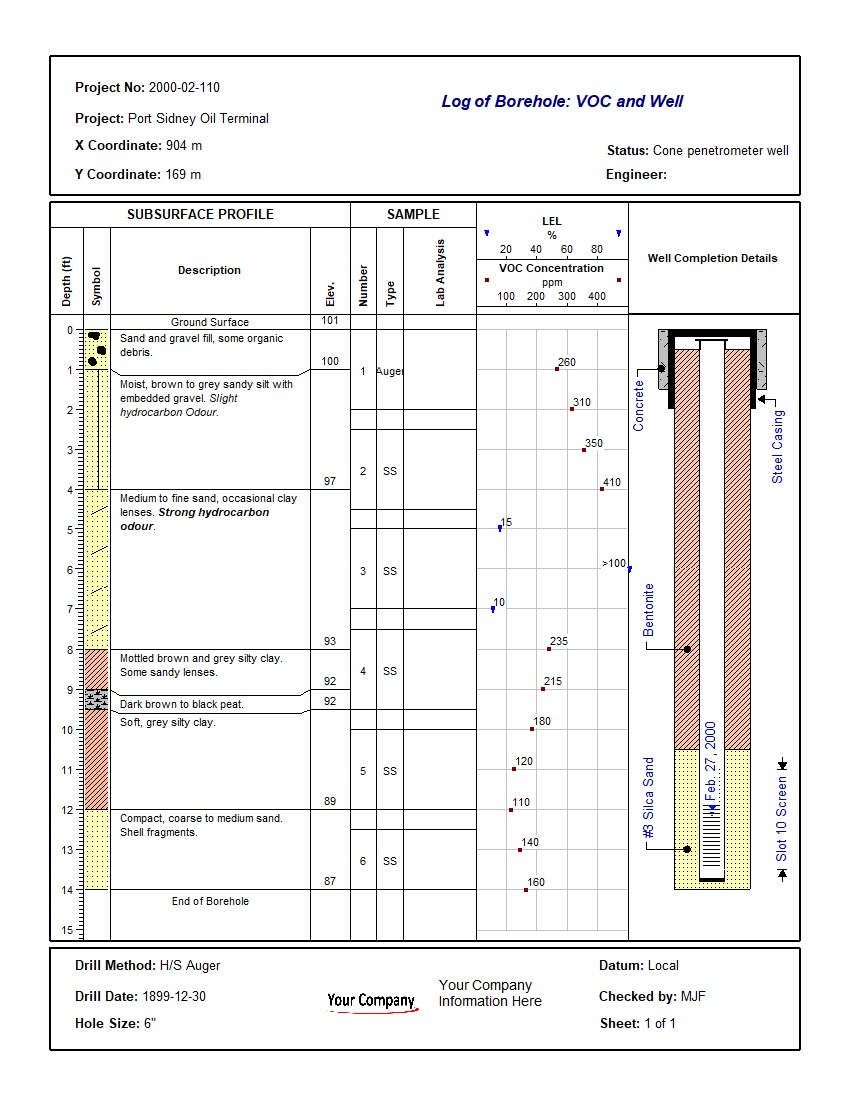

A validated one-page environmental log combining lithology, sampling, VOC concentrations, LEL readings, hydrocarbon-odour observations, groundwater, and detailed monitoring-well construction.
Highlights: VOC, LEL, Samples, Hydrocarbon Odour, Water Level, Well Completion.

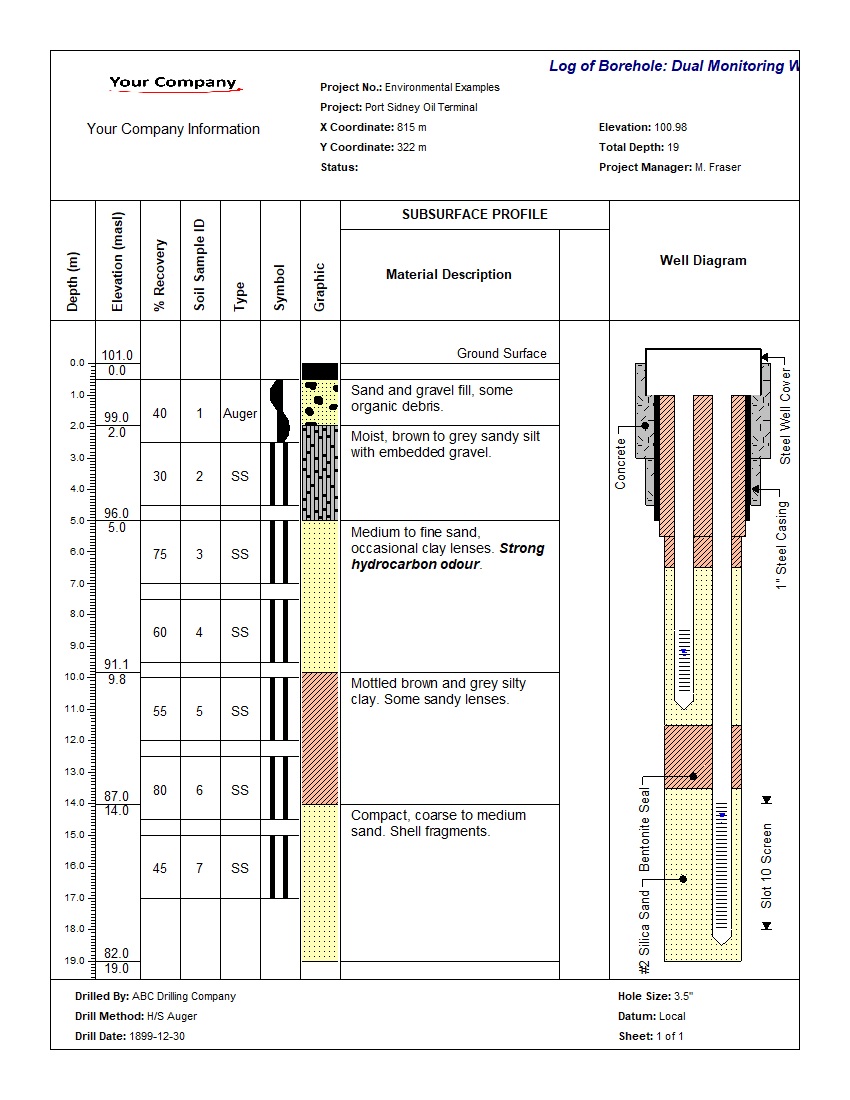

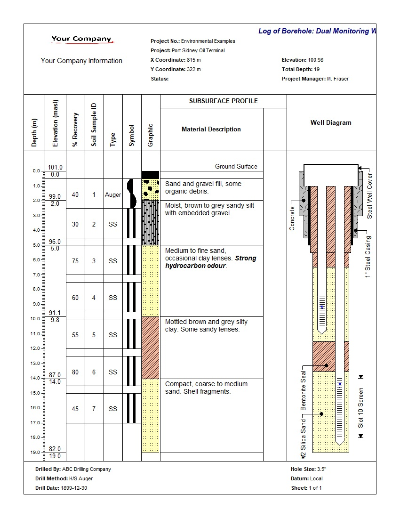

A dual-well environmental log showing separate shallow and deep screens, casing, filter packs, bentonite seals, groundwater levels, lithology, samples, and recovery.
Highlights: Dual Wells, Nested Screens, Water Levels, Well Construction, Samples, Validation Warning.

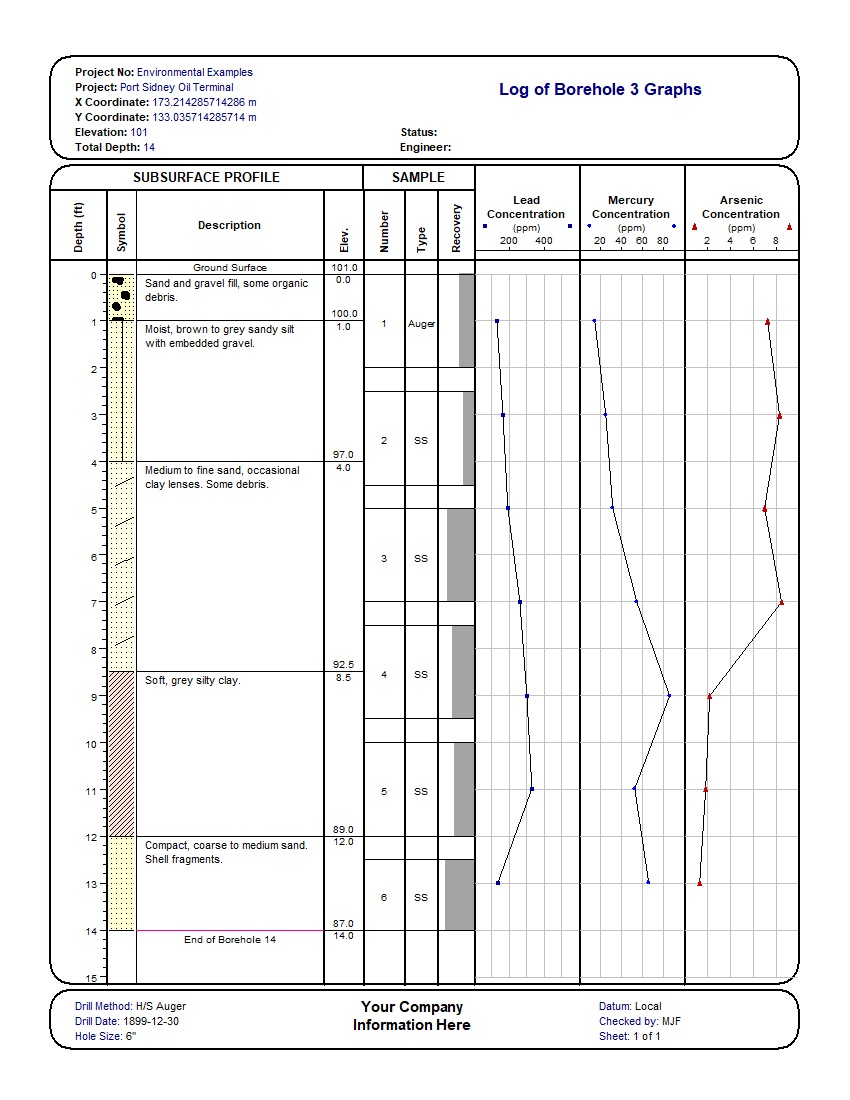

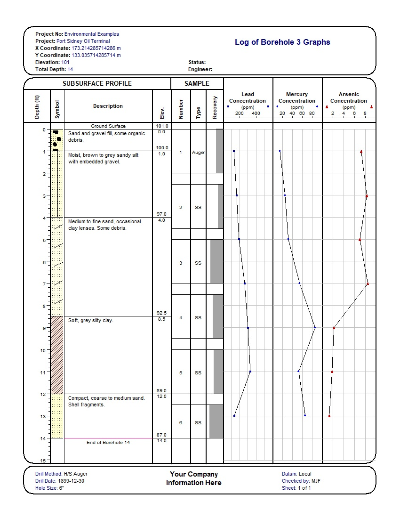

A validated environmental log plotting lead, mercury, and arsenic concentration profiles beside lithology, elevation, sample intervals, sample type, and recovery.
Highlights: Lead, Mercury, Arsenic, Concentration Profiles, Samples, Recovery.

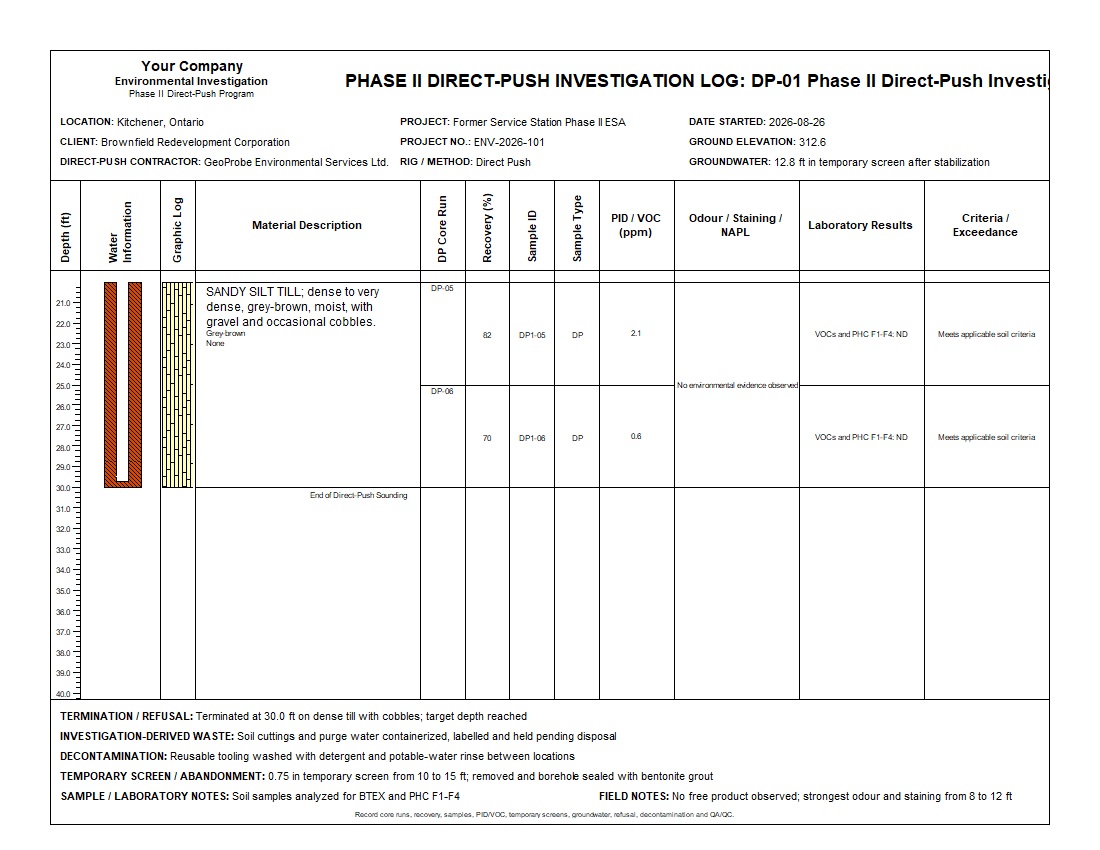

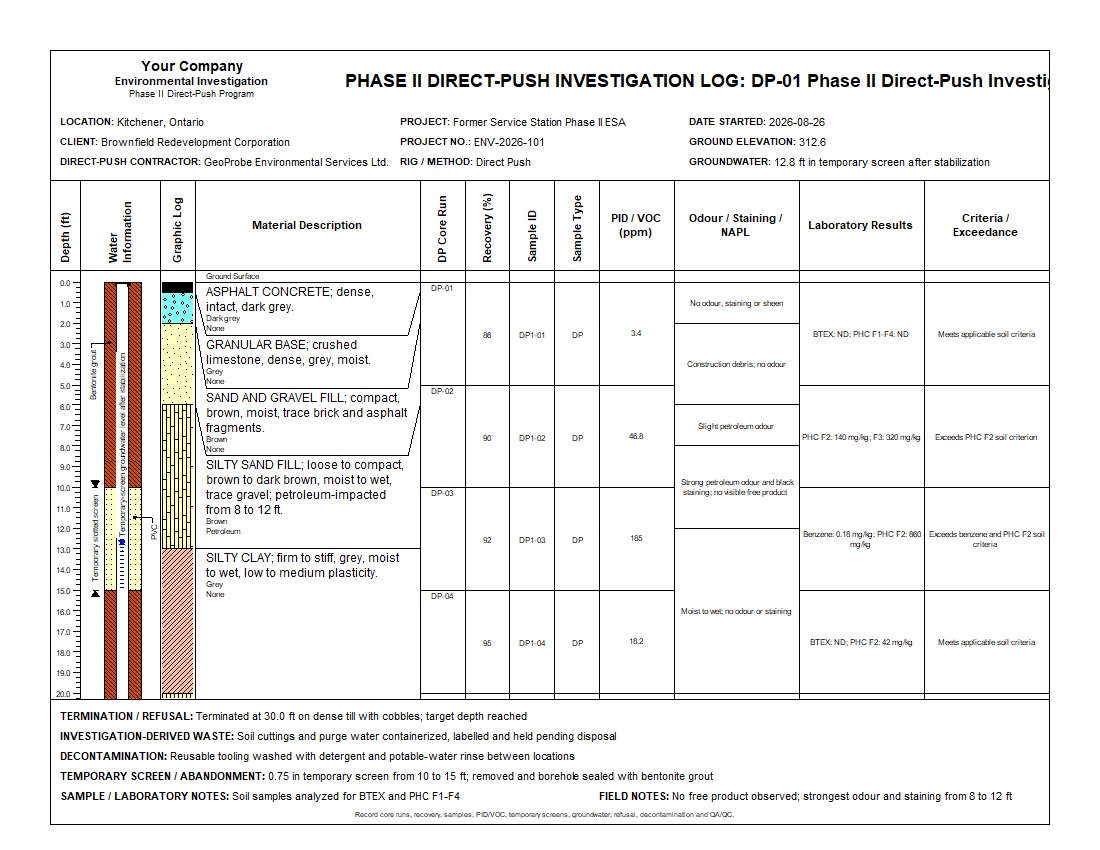

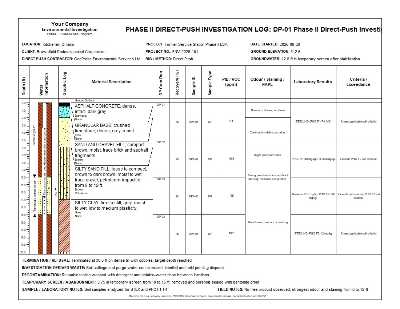

A complete 30 ft Phase II sounding combining six continuous core runs, recovery, discrete soil samples, PID/VOC screening, impact observations, laboratory results, criteria exceedances, temporary-screen groundwater sampling, decontamination, and abandonment records.
Highlights: Direct-Push Cores, Recovery, Samples, PID/VOC, BTEX and PHC Results, Temporary Screen, Groundwater.

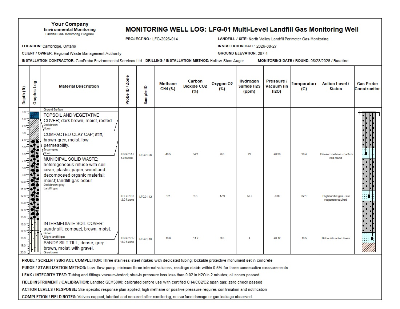

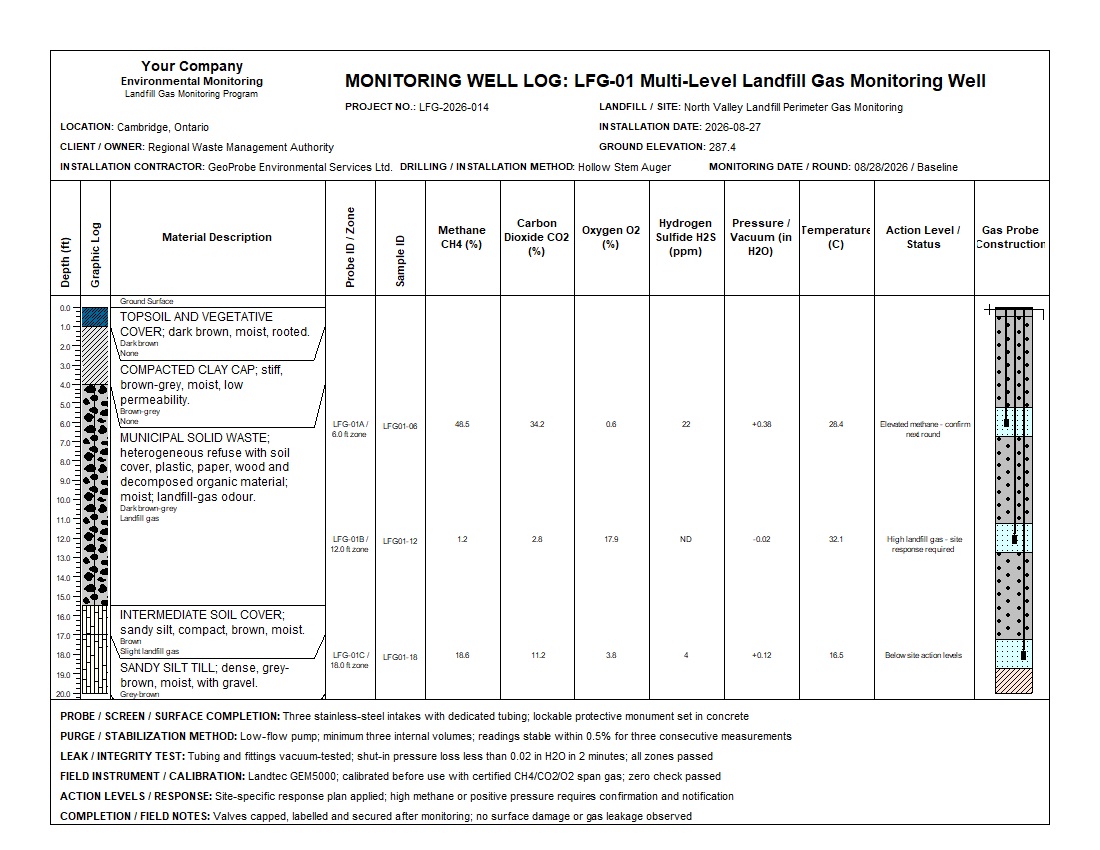

A complete 20 ft perimeter monitoring well with three isolated gas zones, graphical probe construction, depth-matched samples, landfill-gas composition, pressure, temperature, integrity testing, and site-specific response status.
Highlights: Three Gas Zones, CH4, CO2, O2, H2S, Pressure, Temperature, Probe Construction, Action Status.

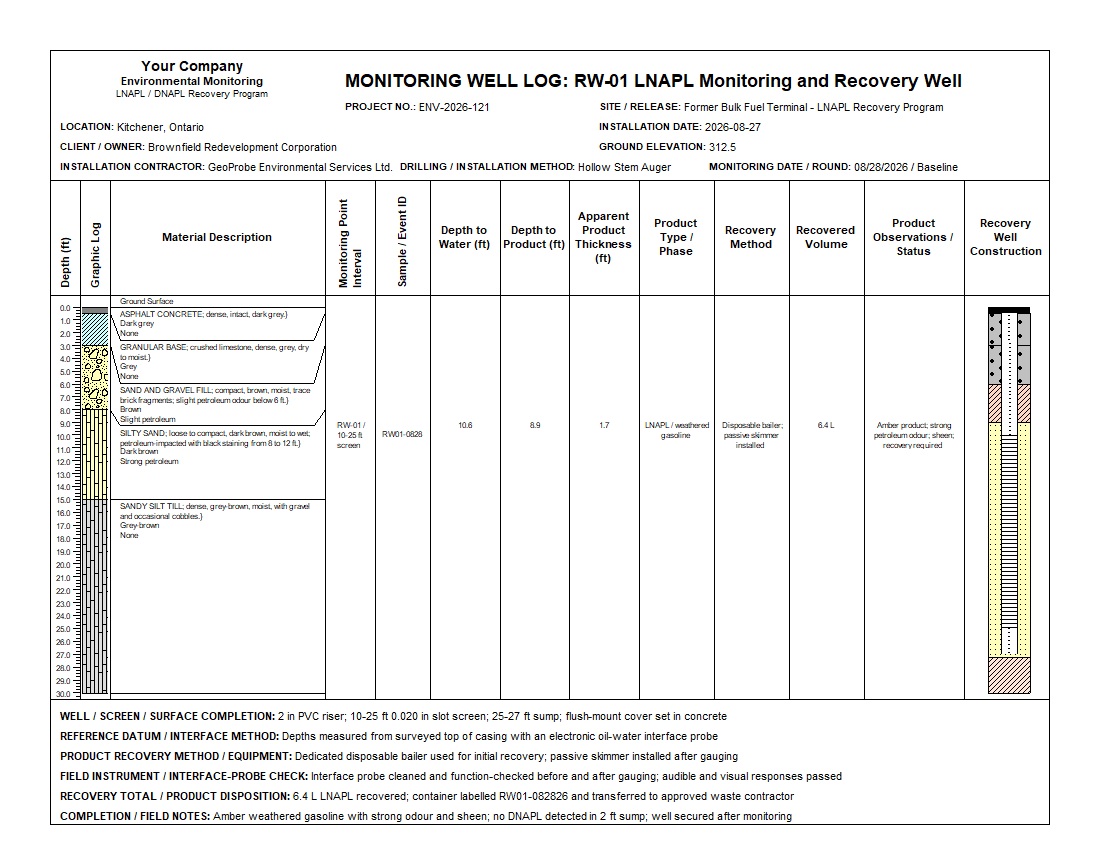

A complete 30 ft recovery well showing impacted stratigraphy, a 10-25 ft screen, water and product interfaces, 1.7 ft apparent LNAPL thickness, recovery method and volume, product observations, disposition, and field QA/QC.
Highlights: LNAPL Interfaces, Apparent Thickness, Recovery Volume, Passive Skimmer, Product Sump, Well Construction.
A complete 10 ft vibracore with five continuous runs, recovery and compression, sediment stratigraphy, five analytical sample sections, redox and field observations, laboratory results, criteria status, and continuous core photography.
Highlights: Vibracore Runs, Recovery, Compression, Sediment Samples, Metals, PAHs, PCBs, Redox, Core Photography.

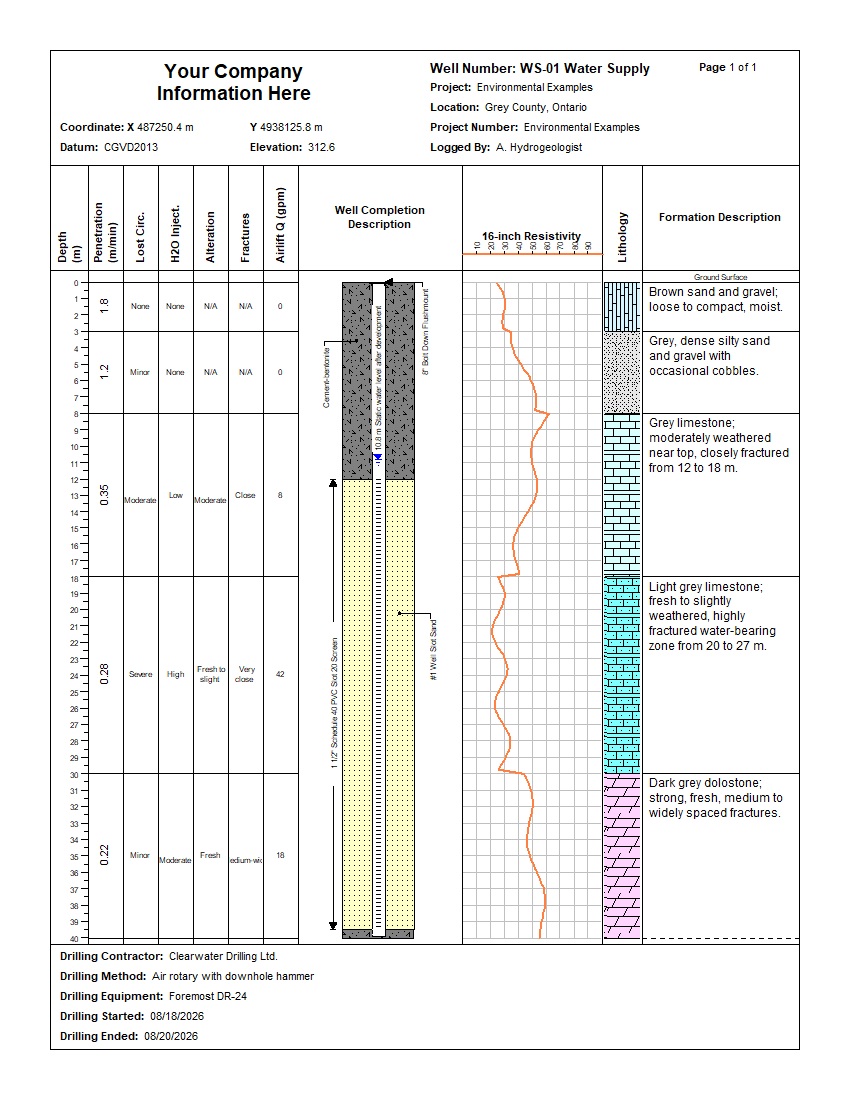

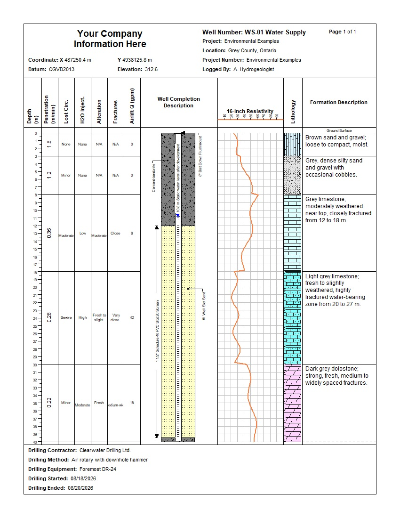

A hydrogeological well log combining lithology, penetration rate, lost circulation, water injection, fractures, airlift yield, well completion, and 16-inch resistivity sampled every 0.5 m.
Highlights: Well Construction, Resistivity, Airlift Yield, Water-Bearing Fractures, Lithology.

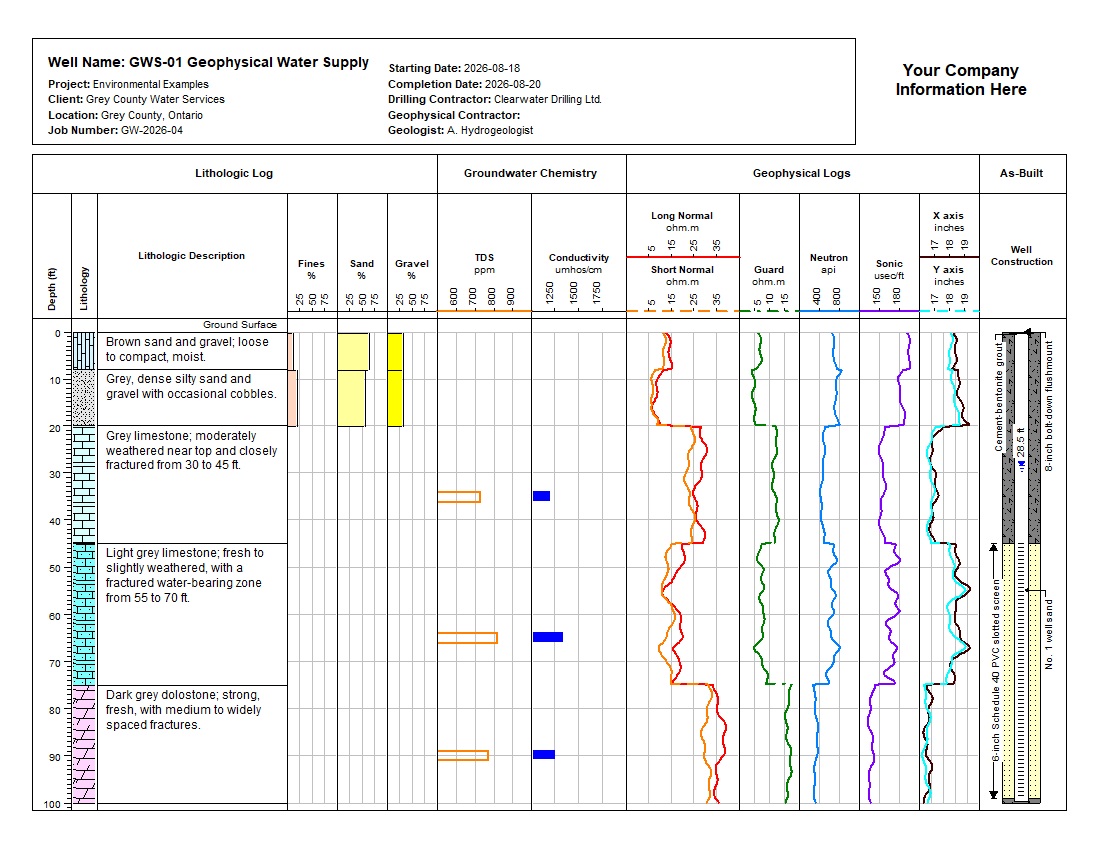

A validated water-supply log combining lithology, particle-size data, groundwater chemistry, seven geophysical curves sampled every 0.25 ft, dual-axis caliper, and as-built well construction.
Highlights: Long and Short Normal, Guard, Neutron, Sonic, Caliper X/Y, Chemistry, Well Construction.
WinLoG XML templates can be customized to match company standards, project requirements, and agency formats.
Download example XML templates and logs, import them into WinLoG, and adapt them for your own projects.
Contact GAEA Technologies for assistance selecting or customizing a WinLoG template.
