Oil & Gas Examples

WinLoG Example Library

Oil & Gas Examples

Browse all 7 examples in this section. Select a log to preview it, download the supporting files, or open its detailed example page.

All Example Categories

7

examples in this category

Oil & Gas

Petroleum and Geophysical Log Examples

Oil sands lithology cross-plot log View Full Log

Oil Sands Lithology Cross-plot

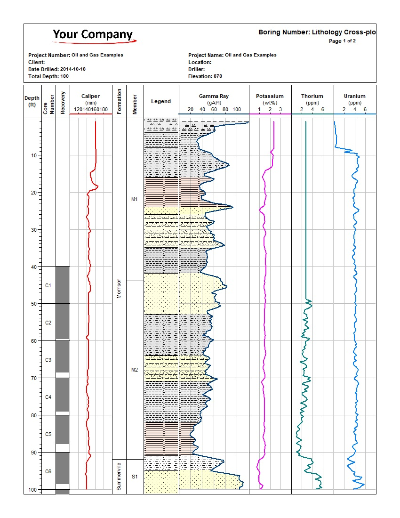

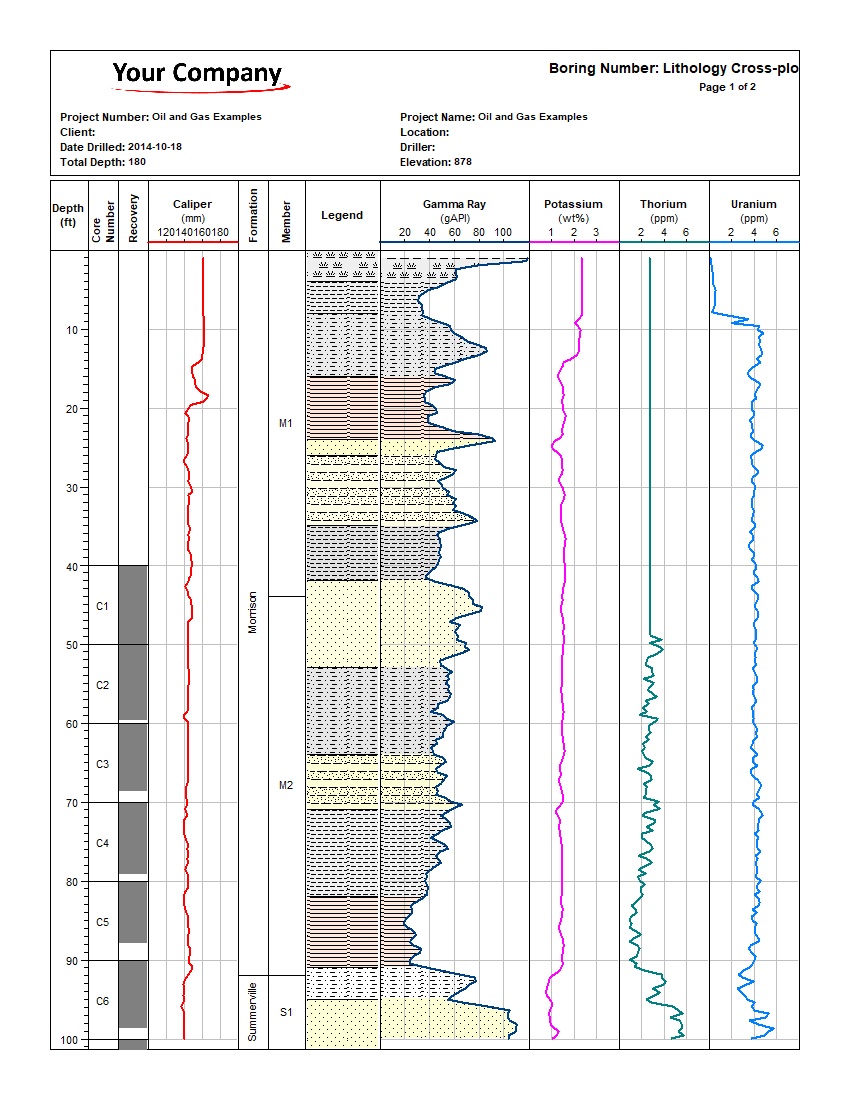

Combines lithology, core recovery, caliper and spectral gamma-ray measurements in a validated two-sheet oil-sands borehole log.

Highlights: Lithology Cross-plot, Gamma Ray, Potassium, Thorium, Uranium.

2-page logValidation Passed
View Log Validation Report Explore This Example
WinLoG Oil Total Gas petroleum well log View Full Log

Total Gas

A clean, validated petroleum log combining total gas, drilling rate, percent cuttings, lithology, formation tops, hydrocarbon observations, and drilling information.

Highlights: Total Gas, Drilling Rate, Percent Cuttings, Lithology, Formation Tops.

2-sheet log Validation Passed
View Log Validation Report Explore This Example
WinLoG Oil Chromatography petroleum well log View Full Log

Oil Chromatography

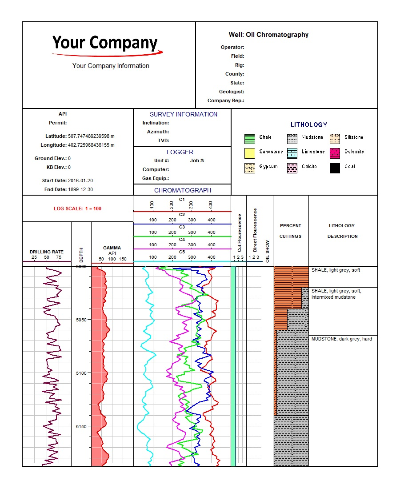

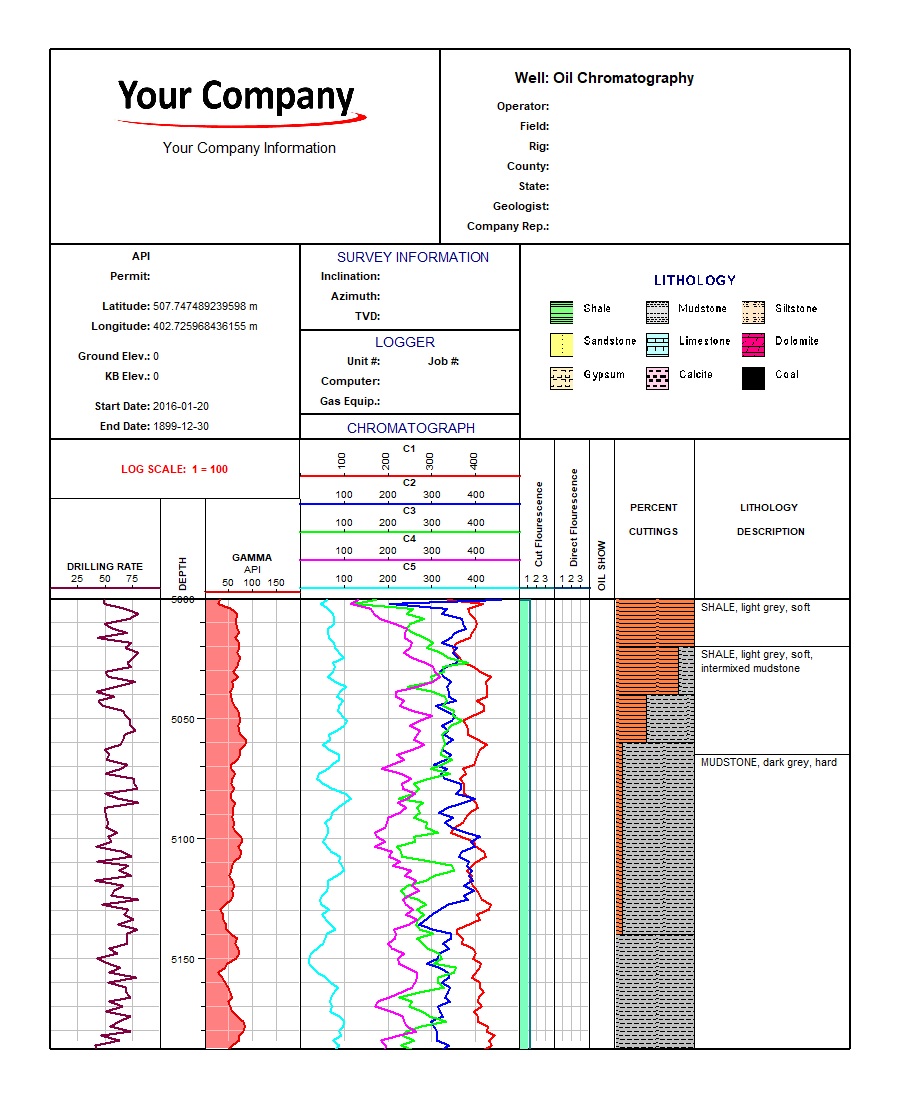

A clean, validated petroleum log combining C1-C5 chromatograph curves, gamma API, drilling rate, fluorescence, oil shows, percent cuttings, and lithology.

Highlights: C1-C5 Chromatography, Gamma API, Drilling Rate, Fluorescence, Oil Shows.

3-sheet log Validation Passed
View Log Validation Report Explore This Example
WinLoG Oil Spectral Resistivity petroleum well log View Full Log

Spectral Resistivity

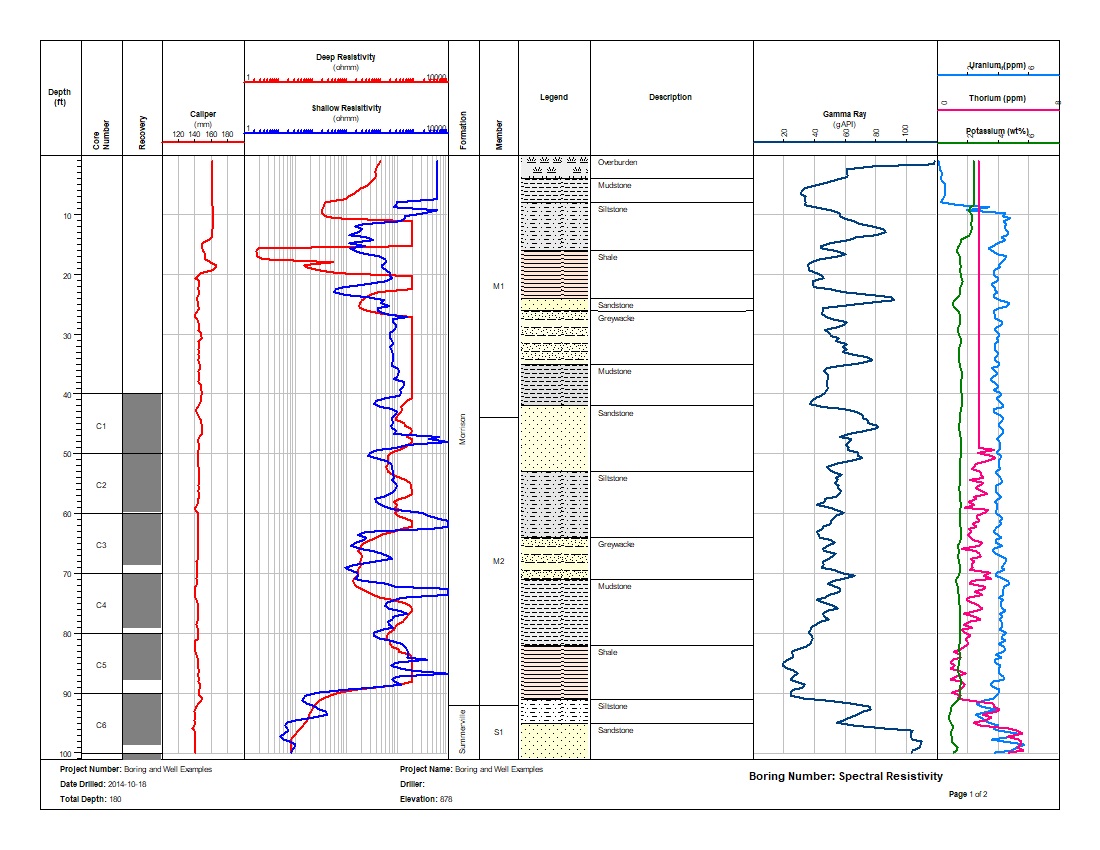

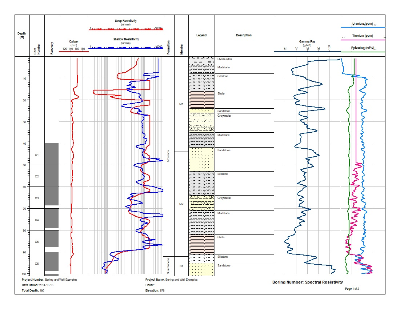

A validated petroleum log combining deep and shallow resistivity, spectral gamma ray, caliper, lithology, formations, members, and core recovery.

Highlights: Deep Resistivity, Shallow Resistivity, Gamma Ray, Potassium, Thorium, Uranium.

2-page log Validation Passed
View Log Validation Report Explore This Example
WinLoG Oil Percent Cuttings and Grain Size petroleum well log View Full Log

Percent Cuttings and Grain Size

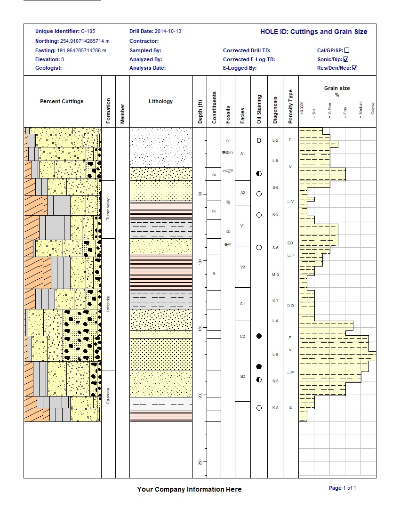

A detailed petroleum log combining proportional cuttings, lithology, formations, grain size, constituents, fossils, facies, oil staining, diagenesis, and porosity type.

Highlights: Percent Cuttings, Grain Size, Lithology, Formation Tops, Oil Staining.

1-page log 3 Warnings
View Log Validation Report Explore This Example
WinLoG Composite Oil petroleum and geophysical well log View Full Log

Composite Oil Log

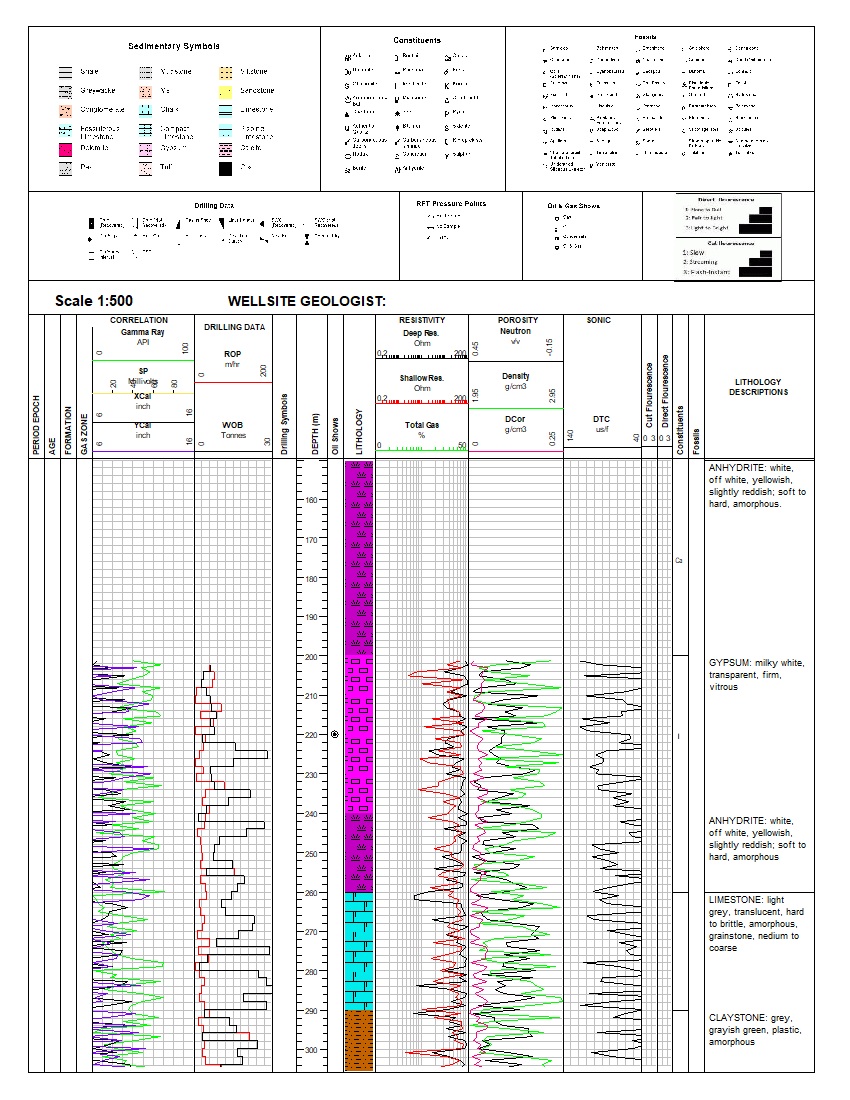

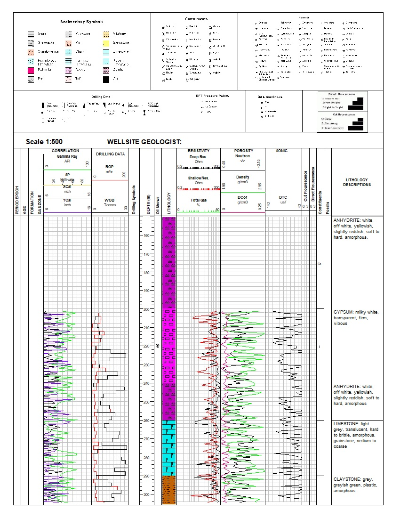

An integrated petroleum log combining drilling, correlation, resistivity, gas, porosity, sonic, formation, fossil, oil-show, and lithology information.

Highlights: Drilling Data, Resistivity, Total Gas, Porosity, Sonic, Lithology.

3-sheet log Validation Passed 44% Complete
View Log Validation Report Explore This Example
WinLoG Oil Sands exploration log View Full Log

Oil Sands

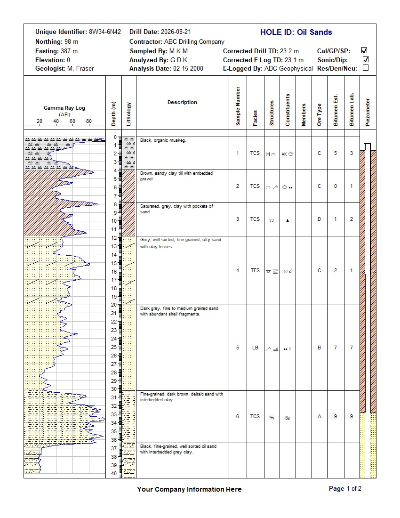

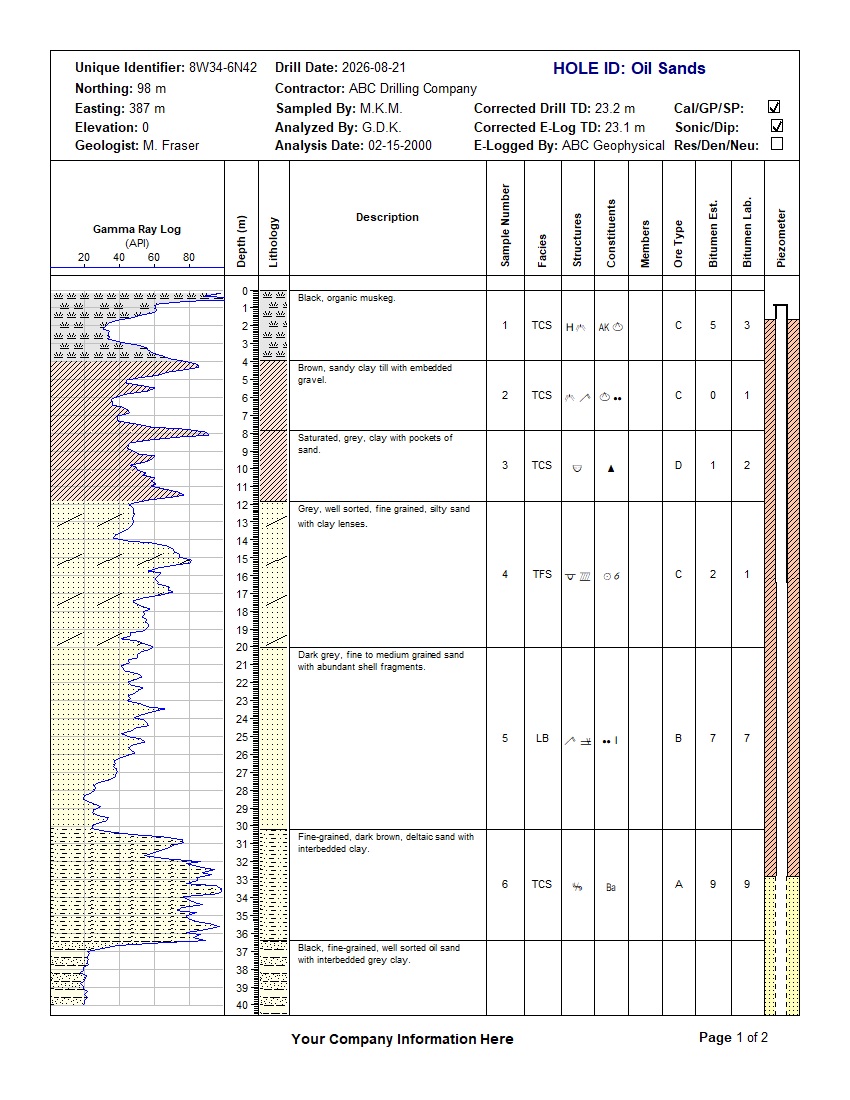

An oil-sands exploration log combining gamma ray, lithology, sample data, facies, structures, constituents, oil staining, bitumen estimates, laboratory results, and piezometer construction.

Highlights: Gamma Ray, Lithology, Facies, Oil Staining, Bitumen Results, Piezometer.

2-page log Validation Passed
View Log Validation Report Explore This Example

Fully Customizable

WinLoG XML templates can be customized to match company standards, project requirements, and agency formats.

Open in WinLoG Professional

Download example XML templates and logs, import them into WinLoG, and adapt them for your own projects.

Need Help?

Contact GAEA Technologies for assistance selecting or customizing a WinLoG template.

Contact Us
